Home » Digitek 27MBTSG Single Phase Temporary Meter Box
Digitek 27MBTSG Single Phase Temporary Meter Box
Digitek 27MBTSG Single Phase Temporary Meter Box
Bitek

Digitek 27MBTSG Single Phase Temporary Meter Box

In stock
SKU: 27MBTSG
$725.03 AUD inc. GST
Free delivery over $150, $15 flat rate below
Dispatched in 1–2 business days
14-day returns & refunds

Bulk quantities, price-on-application lines or technical questions: we usually reply the same business day.

Trade account holders get tiered pricing applied automatically at checkout. Open a trade account or get in touch.

Description

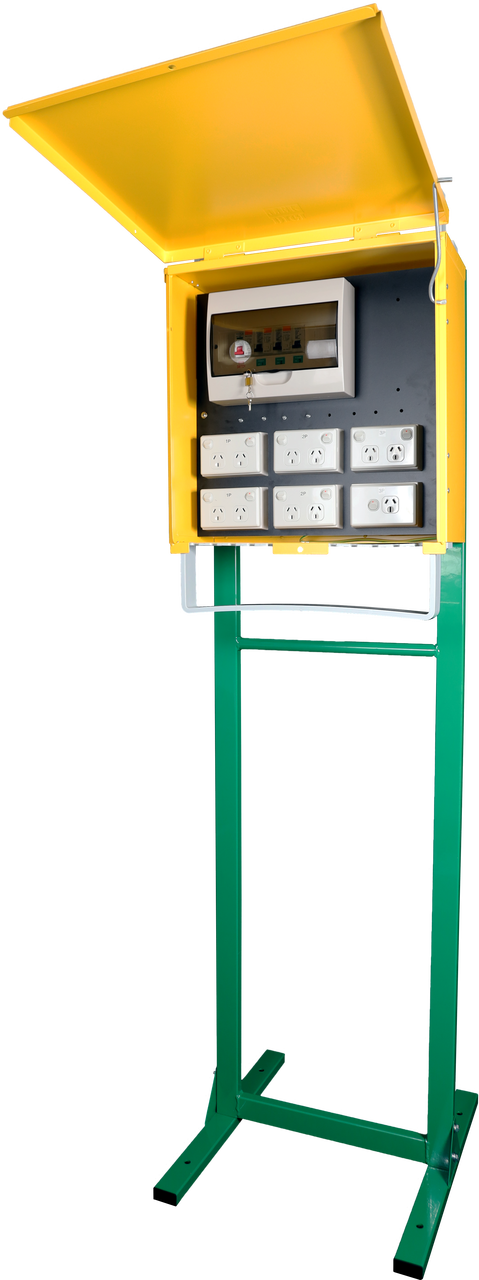

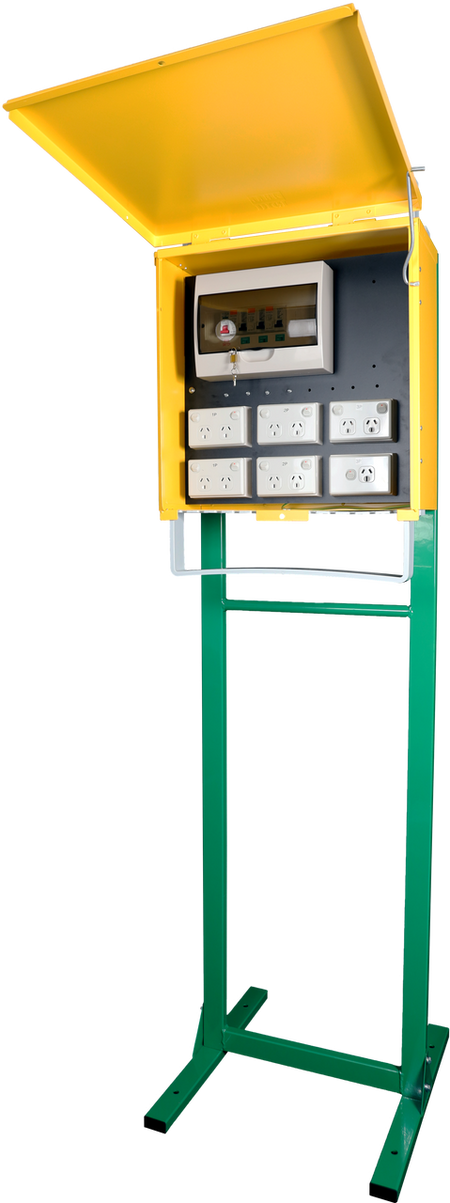

27MBTSG Single Phase Temporary Meter Box

Features:

  • Single Phase Temporary Meter Box (Box and Stand)
  • Assembled Dimensions: 1875mm x 520mm x 610mm (H x W x D)
  • Enclosure Dimensions: 502mm x 505mm x 230mm (H x W x D)
  • Construction: 1.2mm Galvanised Steel Sheets AS1397 Standard
  • Construction Features: Riveted Hinges and Tabs
  • Construction Features: Corrosive Resistant Paint Applied to All Welds
  • Construction Features: UV Stabilised Powder Coated Green Stand and Gold Enclosure
  • Construction Features: Cable Restraint Isolated Tie Rods (Top & Bottom)
  • Door: Removeable. Top Hinged.
  • Door Support: Switchable Arm. Left/Right
  • IP Rating: IP23 Rated AS1939
  • Grounding Point: Earth Stud M5 x 20
  • Security: Single Padlock Locking Point (Padlock Not Included)
  • Packaging: Protective Cardboard Box

Included Accessories:

  • Meter Box and Stand
  • Pre-installed Insulating Panel (AS1795/IEC60893)
  • 3 Phase, 100 Amp Main Switch
  • Provision for 3 Phase Socket Mounted on Main Board
  • 5 x 10 Amp Double Power Points with Active and Neutral Switching
  • 1 x 15 Amp Power Point
  • Lockable Loom Box (Lock Included)

Notes:

  • Fully Wired and Tested in Australia by Licensed Electricians with Locally Sourced SAA Approved Parts

Packaging:

  • 2 Piece Kit. Each in a Protrective Cardboard Box

Product details

Power your construction site or temporary installation with the Digitek 27MBTSG Single Phase Temporary Meter Box, a fully assembled and tested solution designed for safe, compliant single-phase electrical distribution in Australian residential, commercial, and temporary applications. This robust kit includes a meter box and a UV-stabilised green powder-coated stand, measuring 1875mm x 520mm x 610mm (H x W x D) assembled, with the enclosure at 502mm x 505mm x 230mm (H x W x D) for compact yet spacious metering.

Constructed from durable 1.2mm galvanised steel sheets (AS1397 standard) with riveted hinges, tabs, and corrosive-resistant paint on all welds, it features a gold powder-coated enclosure for enhanced visibility and durability in harsh outdoor conditions. The removable top-hinged door with switchable left/right arm support ensures easy access, while the IP23 rating (AS1939) protects against dust and water spray. An M5 x 20 earth stud and a single padlock locking point (padlock not included) enhance safety and security, with isolated tie rods (top and bottom) for organized cable management. Packaged as a 2-piece kit in protective cardboard boxes, it’s ready for immediate deployment.

Fully wired and tested by licensed Australian electricians using SAA-approved local parts, the 27MBTSG includes a 100 Amp main switch, provision for a 3-phase socket on the main board, 5 x 10 Amp double power points with active/neutral switching, a 15 Amp power point, and a lockable loom box (lock included) for secure wiring. A pre-installed insulating panel (AS1795/IEC60893) ensures compliance and safety.

Included Accessories:

  • Meter box and stand
  • Pre-installed insulating panel (AS1795/IEC60893)
  • 100 Amp main switch
  • Provision for 3-phase socket
  • 5 x 10 Amp double power points with active/neutral switching
  • 1 x 15 Amp power point
  • Lockable loom box (lock included)

Key Features:

  • Single-Phase Power: Fully wired for high-demand temporary setups with SAA-approved components.
  • Durable Construction: 1.2mm galvanised steel, UV-stabilised powder coating, IP23 weatherproofing.
  • Secure & Accessible: Hinged removable door, switchable arm, earth stud, and padlock-ready lock.
  • Site-Ready Design: Includes stand, cable tie rods, and provision for 3-phase socket upgrades.
  • Australian Made & Tested: Licensed electricians ensure compliance with local standards.

Perfect for builders, contractors, and electricians needing a reliable, portable power solution, the Digitek 27MBTSG ensures safety and efficiency on Australian sites. Order now for fast delivery and seamless power distribution.

View AllClose

Manufacturer specifications

Type Temporary Meter Boxes

Product details and specifications from Bitek product data.
