PCS-60A 60T Hydraulic Crimping Tool for Cu/Al/ACSR
PCS-60A 60T Hydraulic Crimping Tool for Cu/Al/ACSR
PCS-60A 60T Hydraulic Crimping Tool for Cu/Al/ACSR
PCS-60A 60T Hydraulic Crimping Tool for Cu/Al/ACSR
PCS-60A 60T Hydraulic Crimping Tool for Cu/Al/ACSR
PCS-60A 60T Hydraulic Crimping Tool for Cu/Al/ACSR
CutLink Tools

PCS-60A 60T Hydraulic Crimping Tool for Cu/Al/ACSR

In stock
SKU: PCS-60A
$2,141.85 AUD inc. GST
Free delivery over $150, $15 flat rate below
Dispatched in 1–2 business days
14-day returns & refunds

Bulk quantities, price-on-application lines or technical questions: we usually reply the same business day.

Trade account holders get tiered pricing applied automatically at checkout. Open a trade account or get in touch.

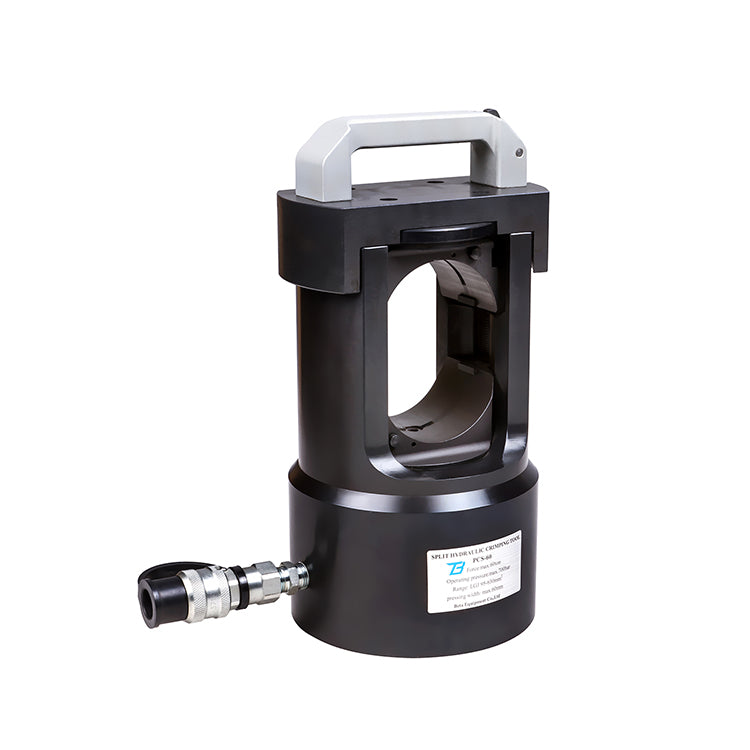

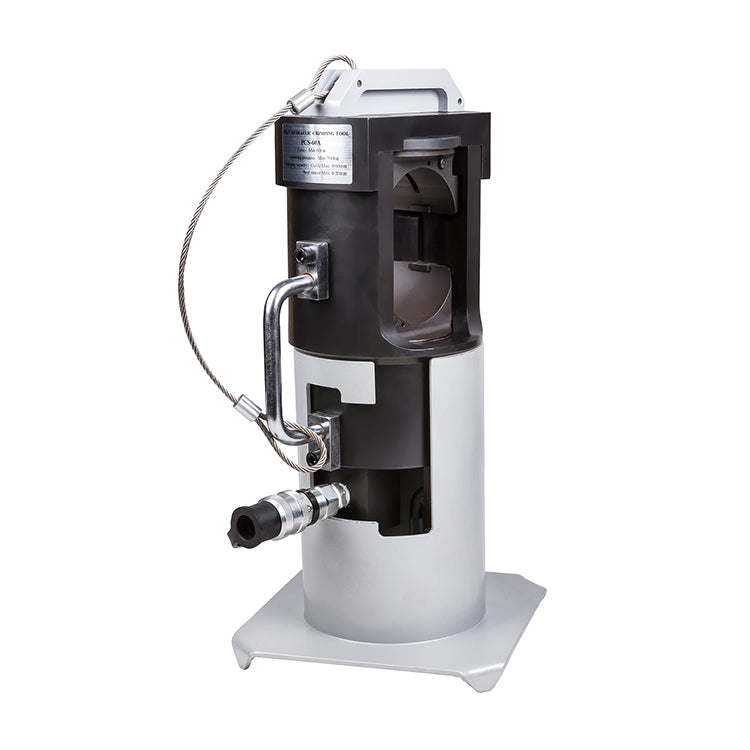

Introducing the PCS-60A Hydraulic Crimping Head, a versatile tool tailored for the demands of 110kV-220kV transmission lines. Designed to handle overhead steel core aluminum intermediate pipe extensions, stranded wires, steel stranded wires, and tension clamps with ease. Its innovative head serves as an upper die fixed seat, enabling swift rotation and quick opening for middle and end crimping tasks. Featuring a convenient quick coupler, disassembly becomes effortless, facilitating efficient maintenance. Powered by a single-acting hydraulic mechanism, this tool ensures reliable crimping performance. With a robust crimping force of 60t, a stroke of 38.5mm, and a rated pressure of 700bar, it offers a substantial crimping capacity of up to 60mm for Cu/Al and 26mm for steel. Weighing just 20kg and housed in a sturdy steel case, its dimensions of 24 x 22 x 45cm (packaging: 50 x 25 x 31cm) make it both portable and resilient, ideal for demanding industrial applications.

Features:

  • Suitable for 110kV-220kV transmission line overhead steel core aluminum intermediate pipe extension of stranded wire and steel stranded wire, as well as crimping of tension clamp.
  • The head serves as the upper die fixed seat, allowing for rotation and quick opening for middle and end crimping operations.
  • Quick coupler enables easy disassembly for efficient maintenance and operation.
  • Powered by a single-acting hydraulic mechanism, providing reliable crimping performance.

Specifications:

  • Crimping Force: 60t
  • Stroke: 38.5mm
  • Rated Pressure: 700bar
  • Crimping Capacity:
    • Cu/Al: Max 60mm
    • Steel: Max 26mm
  • Weight: 20kg

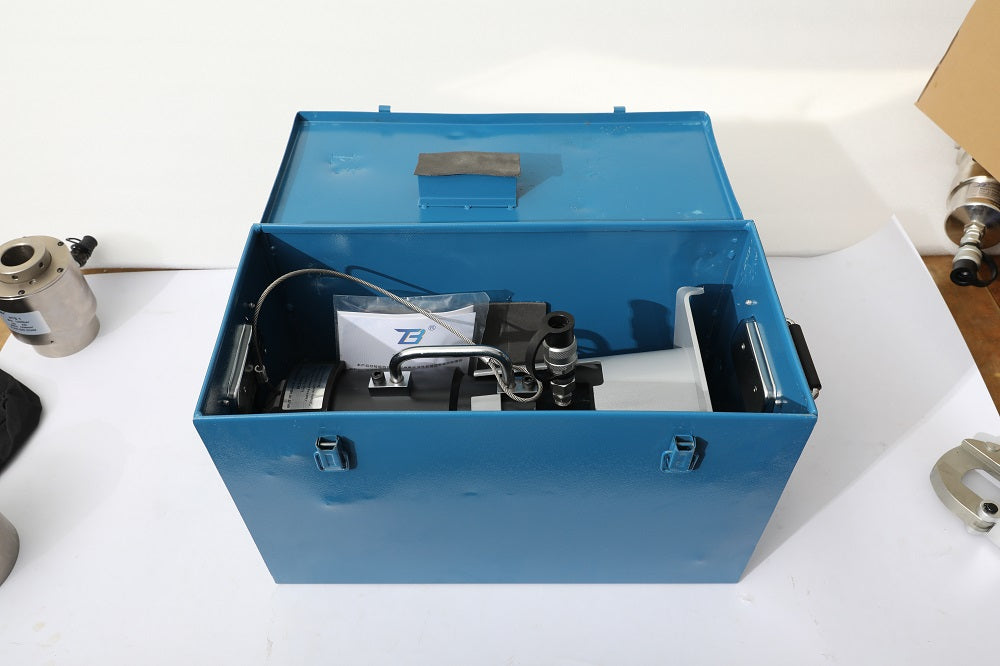

  • Packing: Steel Case
  • Dimensions: 24 x 22 x 45cm
  • Packing Size: 50 x 25 x 31cm

Warranty - 18 months after date of purchase

Datasheet
