Copper Lug 6mm2 Cable 8mm Stud
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Product Overview

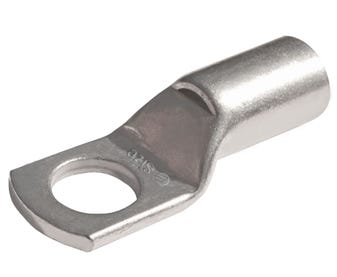

The CABAC CAL6-8 Copper Lug is a compression lug for terminating 6mm² copper cable onto an 8mm stud. It is suitable for electricians and maintenance contractors working on small power, control, equipment, bonding and earthing circuits where a compact copper lug termination is required.
Manufactured from high-conductivity annealed copper, this lug is designed to form a secure mechanical and electrical connection when crimped with compatible CABAC or MSS Power standard tooling and dies. The 8mm stud hole suits equipment terminals, links, earth bars and connection points that require a larger fixing hole while using a 6mm² copper conductor.
Key Features
- Suits 6mm² copper cable
- 8mm stud hole
- High-conductivity annealed copper construction
- Designed for compression crimping
- Compatible with CABAC and MSS Power standard tooling and dies
- General-purpose lug for copper conductor terminations
- Suitable for power, control and bonding applications
Typical Applications
- Electrical control panels
- Switchboards and distribution boards
- Earthing and bonding connections
- Equipment wiring
- Commercial electrical installations
- Maintenance and repair work
Technical Specifications
| Brand | CABAC |
| Manufacturer Part Number | CAL6-8 |
| Product Type | Copper Compression Lug |
| Cable Size | 6mm² |
| Stud Size | 8mm |
| Material | High-conductivity annealed copper |
| Installation Method | Compression crimp |
| Compatible Tooling | CABAC and MSS Power standard tooling and dies |
| Conductor Type | Copper conductor |
Installation Notes
Use the correct die for 6mm² copper cable and verify that the 8mm stud hole suits the termination point. Insert the conductor fully into the barrel before crimping and check the finished crimp for secure conductor retention.
