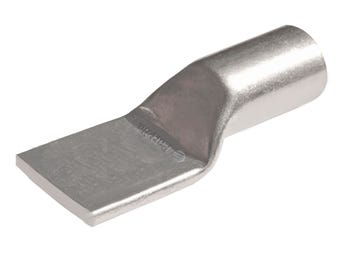

The CABAC Copper Long Palm Long Barrel 300mm² Lug is designed for heavy-duty copper conductor terminations where additional palm area and barrel length are required. Manufactured from high-conductivity annealed copper, this lug is suitable for compression crimping with CABAC and MSS Power standard tooling and dies, helping provide a reliable low-resistance connection in demanding electrical installations.
The long palm and long barrel design assists where extra mechanical support, termination surface area or project-specific drilling is required. It is commonly used in switchboards, distribution equipment, cable jointing, industrial power systems and large electrical infrastructure works.
Key Features
- Suits 300mm² copper cable
- Long palm and long barrel lug design
- High-conductivity annealed copper
- Compression crimp installation
- Compatible with CABAC and MSS Power standard tooling and dies
- Can be used for FERTS applications where suitable
- Complies with AS4325.1
Typical Applications
- Main switchboards and distribution boards
- Large copper cable terminations
- Industrial power installations
- Busbar and equipment connections
- Utilities and infrastructure projects
Technical Information
| Brand | CABAC |
| Part Number | CAL300LPB |
| Cable Size | 300mm² |
| Lug Type | Long palm, long barrel |
| Material | High-conductivity annealed copper |
| Installation Method | Compression crimp |
| Applicable Standard | AS4325.1 |
Installation Note: Use the correct die set for the cable size and confirm palm drilling or fixing requirements against the equipment manufacturer’s termination details.
