CCon.50-120mm2run 6mm2tap
Couldn't load pickup availability
Got questions?
Feel free to get in touch.

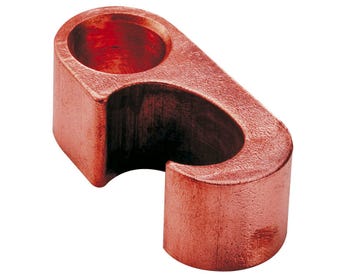

The CABAC CAEC6 heavy-duty C connector is designed for copper conductor tap-off and earth rod connection applications. It suits 50–120mm² run conductors with a 6mm² tap conductor and is also intended for use with 13mm, 14mm and 15mm diameter earth rods where a compression connection is required.
This connector is used in earthing, bonding, direct-burial and infrastructure installations where a durable copper compression connection is preferred over a bolted clamp. The C connector format provides a compact permanent joint when installed using the correct crimping tooling and die set.
Key Features
- Suits 50–120mm² run conductor with 6mm² tap
- Compatible with 13mm, 14mm and 15mm earth rods
- Heavy-duty copper C connector design
- Suitable for direct burial applications
- Compression crimp installation
- Designed for earthing and bonding conductor connections
Typical Applications
- Earth rod tap-off connections
- Copper conductor bonding
- Earthing systems
- Utility and infrastructure works
- Industrial electrical installations
Technical Information
| Brand | CABAC |
| Part Number | CAEC6 |
| Run Conductor Range | 50–120mm² |
| Tap Conductor Size | 6mm² |
| Earth Rod Diameter | 13mm, 14mm, 15mm |
| Connector Type | Heavy-duty C connector |
| Installation Method | Compression crimp |
Installation Note: Confirm conductor and earth rod sizes before crimping. Use only the correct compression tooling and die profile for the connector size and application.
