Bolted Aluminium Link 95–16mm²

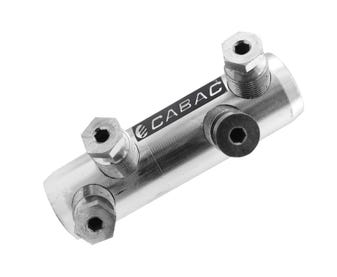

The CABAC Bolted Aluminium Link 95–16mm² is a mechanical cable link for joining compatible aluminium conductors within the nominated size range. It is designed for low-voltage distribution, utility, service and industrial cable jointing where a secure bolted connection is required.
The tin-plated aluminium construction assists with corrosion resistance, while the shear bolt system provides a controlled termination method without conventional crimp tooling.
Key Features
- Suits 95–16mm² conductors
- Mechanical shear bolt link
- Tin-plated aluminium body
- Suitable for solid or stranded conductors
- Suitable for sector or circular conductor forms
- Designed for permanent electrical connections
Typical Applications
- LV cable jointing
- Utility distribution networks
- Service cable repairs
- Industrial power installations
- Aluminium conductor transitions
Technical Specifications
| Brand | CABAC |
| Part Number | BALK95 |
| Product Type | Bolted Aluminium Link |
| Conductor Range | 95–16mm² |
| Material | Aluminium |
| Finish | Tin Plated |
| Termination Method | Mechanical Shear Bolt |
Installation Notes
Confirm conductor compatibility and follow CABAC installation guidance for preparation, insertion depth and tightening sequence.
