Service Strain Clamps
For termination of insulated overhead service mains at either pole or house end.
Wedge action ensures clamping force as span tension increases. Provides a reliable service termination with mechanical rating for various applications.
Product Range
| Product Number | Description | Cable Size & Configuration (mm²) | Max Failing Load (kN) |

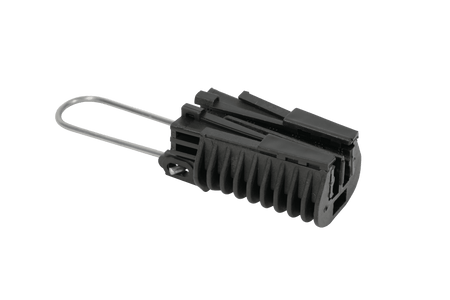

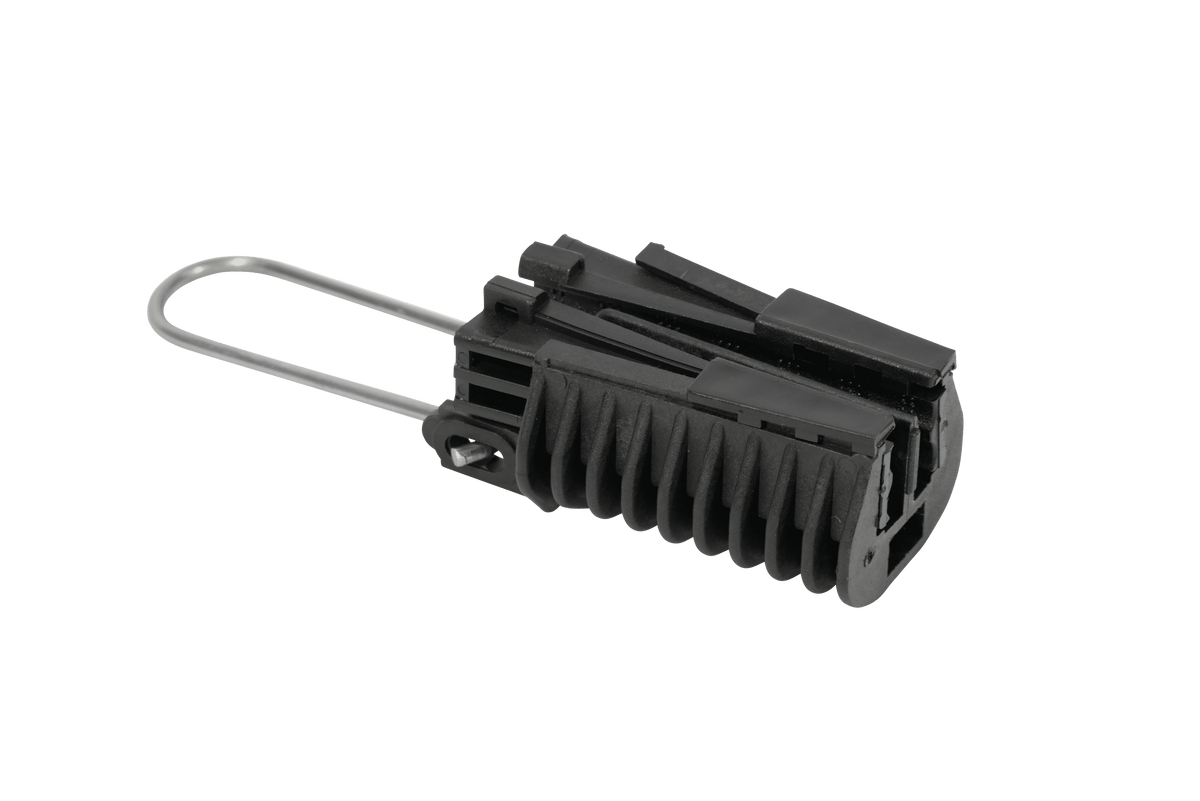

| PC63F27 | For LVABC XLPE insulated suitable for 2, 3, 4 core bundle, twisted or flat (use blanking for non used cores). Stainless steel bail | 2 x 6 to 4 x 35 | 2.5 |

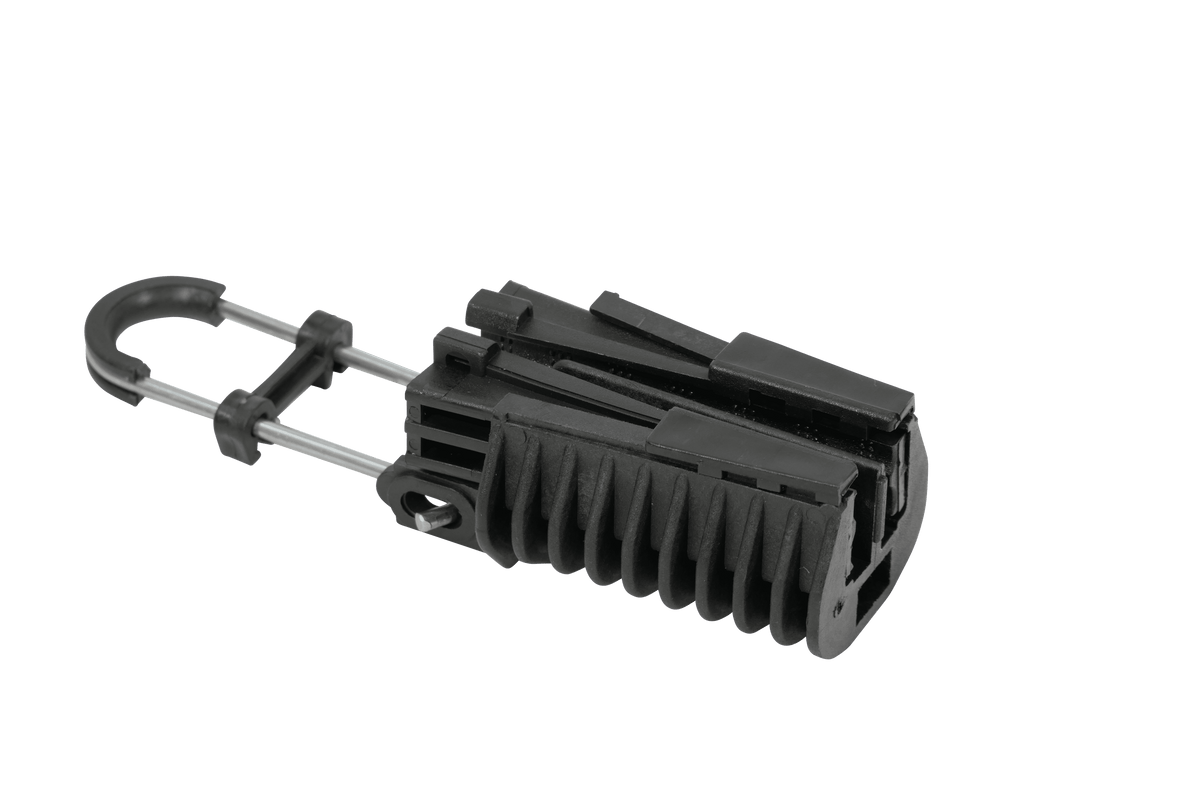

| PC63F27A | For LVABC XLPE insulated suitable for 2, 3, 4 core bundle, twisted or flat (use blanking for non used cores). Stainless steel bail with retaining clip and wear sleeve | 2 x 6 to 4 x 35 | 2.5 |

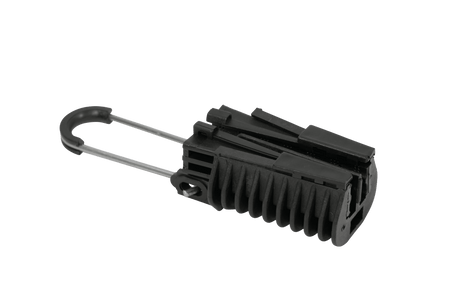

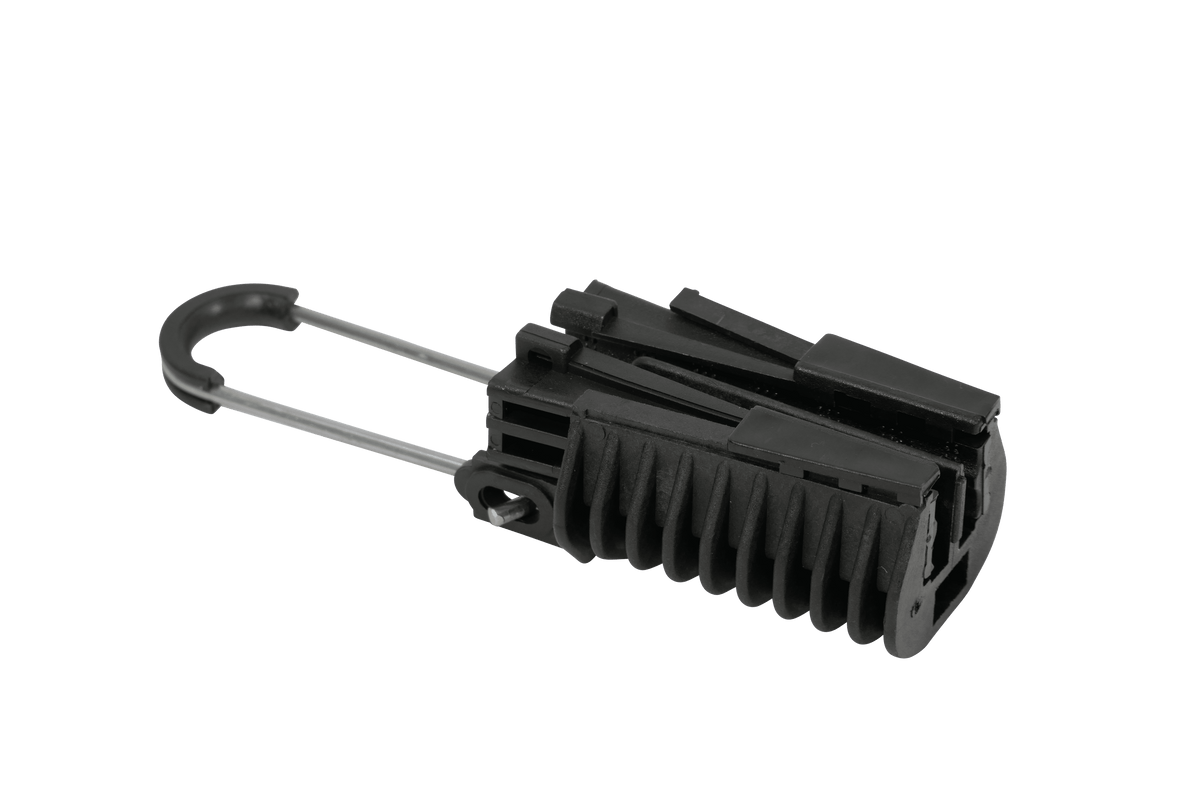

| PC63F27B | For LVABC XLPE insulated suitable for 2, 3, 4 core bundle, twisted or flat (use blanking for non used cores). Stainless steel bail with retaining clip | 2 x 6 to 4 x 35 | 2.5 |
| PC63R22 | For insulated neutral screened conductor | 14-22 single conductor | 2.5 |
| PA4 | Suitable for all twin insulated conductor either twisted or flat, suitable for longer spans or high wind areas | 2 x 6 to 2 x 25 | 6 |
| PA5 | Suitable for all twin insulated conductor either twisted or flat, suitable for longer spans or high wind areas or major crossings | 2 x 25 to 2 x 50 | 14 |
| PA5D | Suitable for all twin insulated conductor either twisted or flat, suitable for longer spans or high wind areas or major crossings | 2 x 16 to 4 x 25 | 12 |
| PA2535 | Strain clamp with aluminium arm – to suit 2 x 25 to 4 x 35 LVABC XLPE 2, 3 & 4 core (use blanking for non used cores). Designed for long spans over roads, dams, driveways, rail or high wind areas | 2 x 25 to 4 x 35 | 11 |

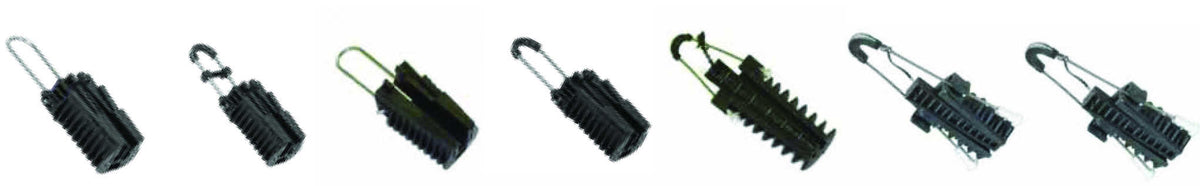

• PA series for high tension applications
• PC series for lower service tensions
• The PC series are suitable for 2, 3 and 4 core twisted bundle (use blanking conductor for unused grooves)
• Solid stainless steel bail on PC series and stainless steel flexible strand on the PA
• Body and wedges made from UV stabilised nylon
• No loose components to fall to ground
• Accepts any line angle as clamp follows conductor direction.
