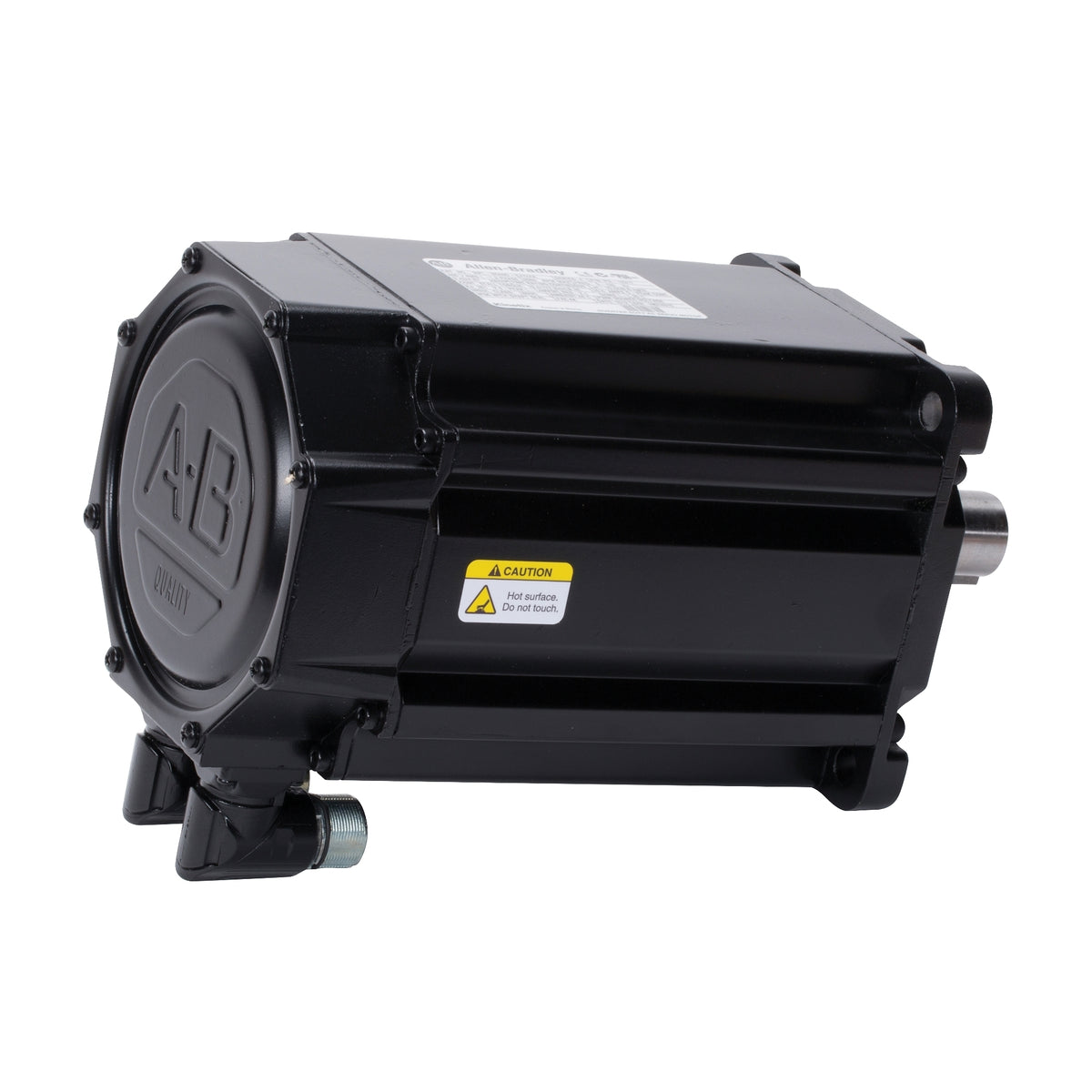

Allen-Bradley Kinetix MPL Servo Motor 460VAC 4000 RPM 19.4Nm Single Turn Encoder 24VDC Brake Keyed
Regular price
$0.00 USD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Electric servomotor
Electrical
Voltage class AC400 V
Communication
Feedback typeSingle-turn high resolution
Feedback resolutionSin/Cos, 1024 cycles/rev
Feedback protocolHiperFace DSL Protocol/SSI Protocol
Construction
With brakeYes
Magnet stack (length)101.6 mm
Magnet stack (number of magnets)40
Degree of protection (IP)IP50
Mechanical
Rotational speed4000 1/min
Nominal torque48.6 Nm
Torque19.4 Nm
Shock acceleration (Max)20 g
Vibration frequency, operational (Max)2000 Hz
Vibration acceleration (Max)2.5 m/s²
Dimensions
Weight17.6 g
Environment
Operating temperature0-40 °C
Allowable relative humidity5-95 %
Ambient temperature-30-70 °C
