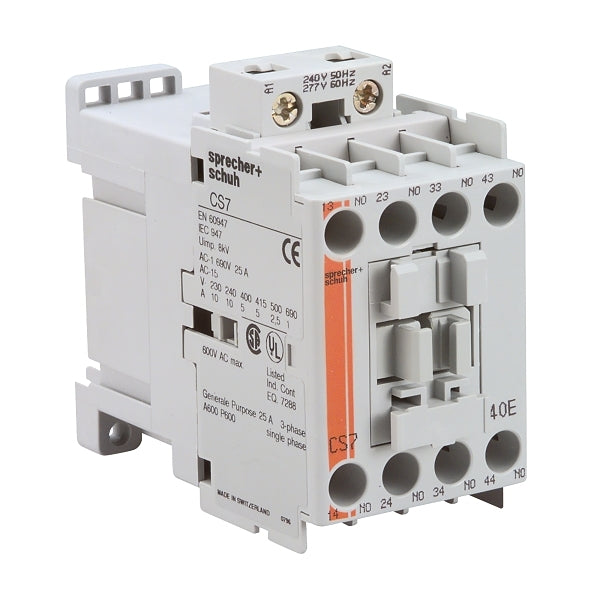

S&S CS7 Control Relay 24VAC Coil 4NO Contact
Regular price
$0.00 USD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Contactor relay
Electrical
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact4
Rated operation current Ie, 400 V20 A
Max. rated operation voltage Ue AC690 V
Voltage type for actuatingAC
Control supply voltage Us at AC 50HZ24 V
Power consumption, AC coil pickup75 VA
Power consumption, AC coil hold-in9.5 VA
Control supply voltage Us at AC 60HZ24 V
Construction
Mounting methodDIN-rail/screw
Mechanical
Connection type auxiliary circuitScrew connection
Dimensions
Height81 mm
Width45 mm
Depth86.5 mm
Weight0.39 kg
