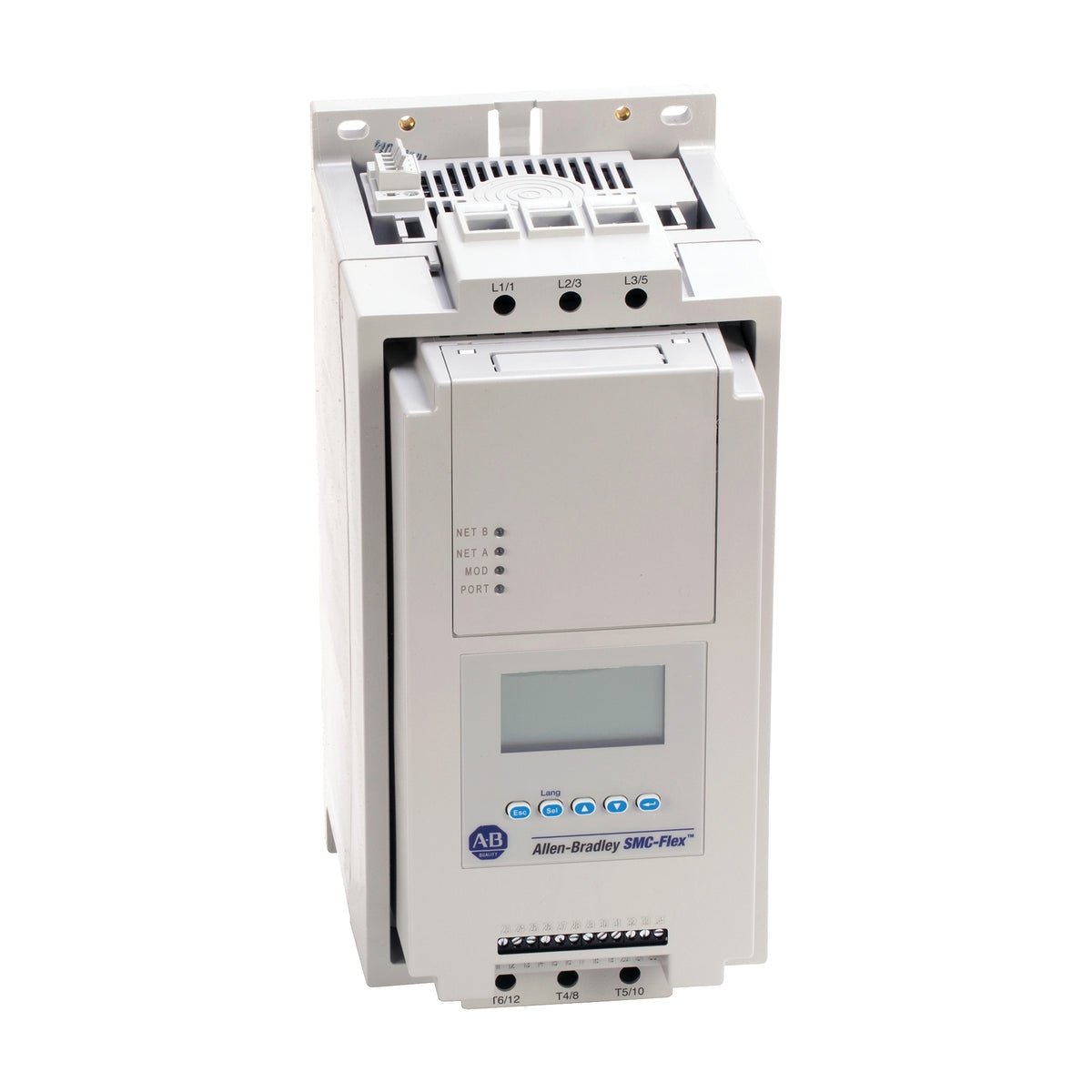

Allen-Bradley SMC Flex Soft Starter 480V 60A ND3W 100 to 240VAC Control
Regular price
$0.00 USD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Soft starter
Electrical
Rated operation current Ie at 40 °C Tu60 A
Rated power three-phase motor, inline, at 400 V30 kW
Rated power three-phase motor, inside delta, at 400 V55 kW
Rated operating voltage Ue200-480 V
Integrated motor overload protectionYes
Release classAdjustable
Internal bypassYes
Voltage type for actuatingAC
Rated control supply voltage Us at AC 50HZ100-240 V
Rated control supply voltage Us at AC 60HZ100-240 V
FunctionSingle direction
Construction
With displayYes
Degree of protection (IP)IP20
Dimensions
Height321 mm
Width150 mm
Depth203 mm
Weight5.7 kg
Environment
Rated surrounding temperature without derating40 °C
