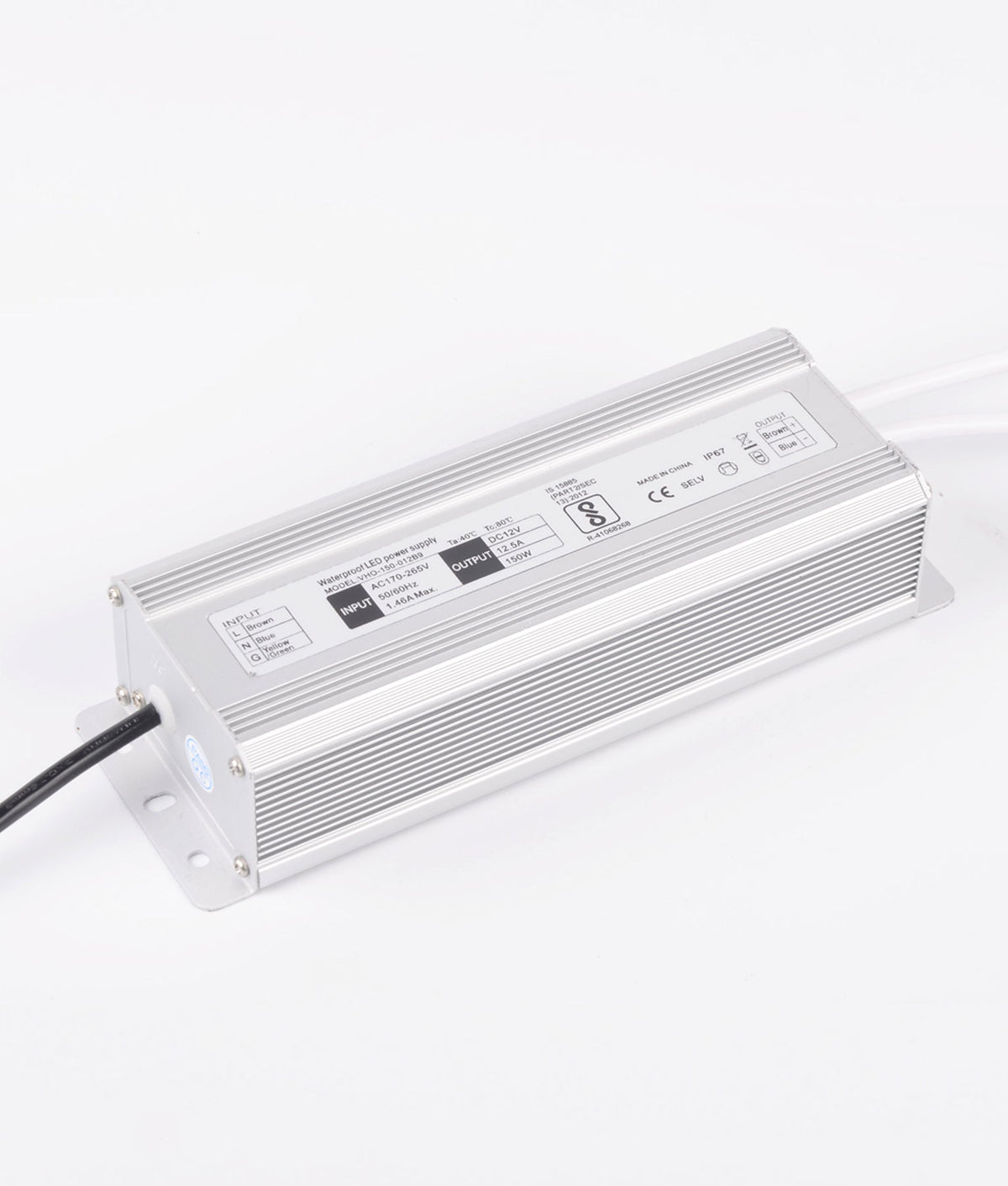

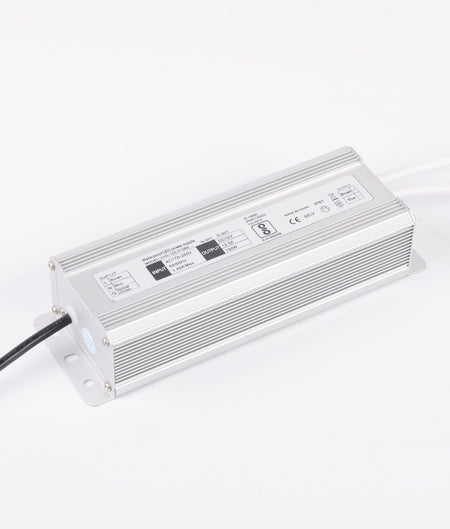

OTTER6 12V Waterproof Constant Voltage LED Driver IP67 (200W)
The OTTER6 12V Waterproof Constant Voltage LED Driver IP67 (200W) is a CLA Lighting control gear item from the OTTER6 range, part number OTTER6.
Features and specifications are below. For trade or project quantities, contact DZ Electrical Products for a quote.
This driver is manufactured with a split cable format for carrying increased current for easier connection of multiple loads
● At full load capacity by connecting all cables to one terminal block
● With any combination of split cables (as long as the minimum and maximum loads below are adhered to)
Key Features
- 12V DC constant voltage LED driver
- Input voltage: 170-265V 50/60Hz
- Output voltage: 12V DC
- Short circuit, overload and thermal protection
- Built in Active PFC function
- Ambient temperature: -30 to 50°C
- Flex & plug included: 1.2m
- IP rating: IP67
Specifications
| Brand |
CLA Lighting |
| Part number |
OTTER6 |
| Range |
OTTER6 |
| Category |
Control Gear |
| IP rating |
IP67 |
| Warranty |
3 year replacement warranty |
| Barcode |
9326191036026 |
Important Notes
- Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).
- To avoid disappointment and warranty problems, please ensure the IP rating of the chosen product is relevant for the intended use.
- When calculating quantity of lamps to be used per driver / transformer: Minimum Load: 10% of rated power; Maximum Load: 80% of rated power.
