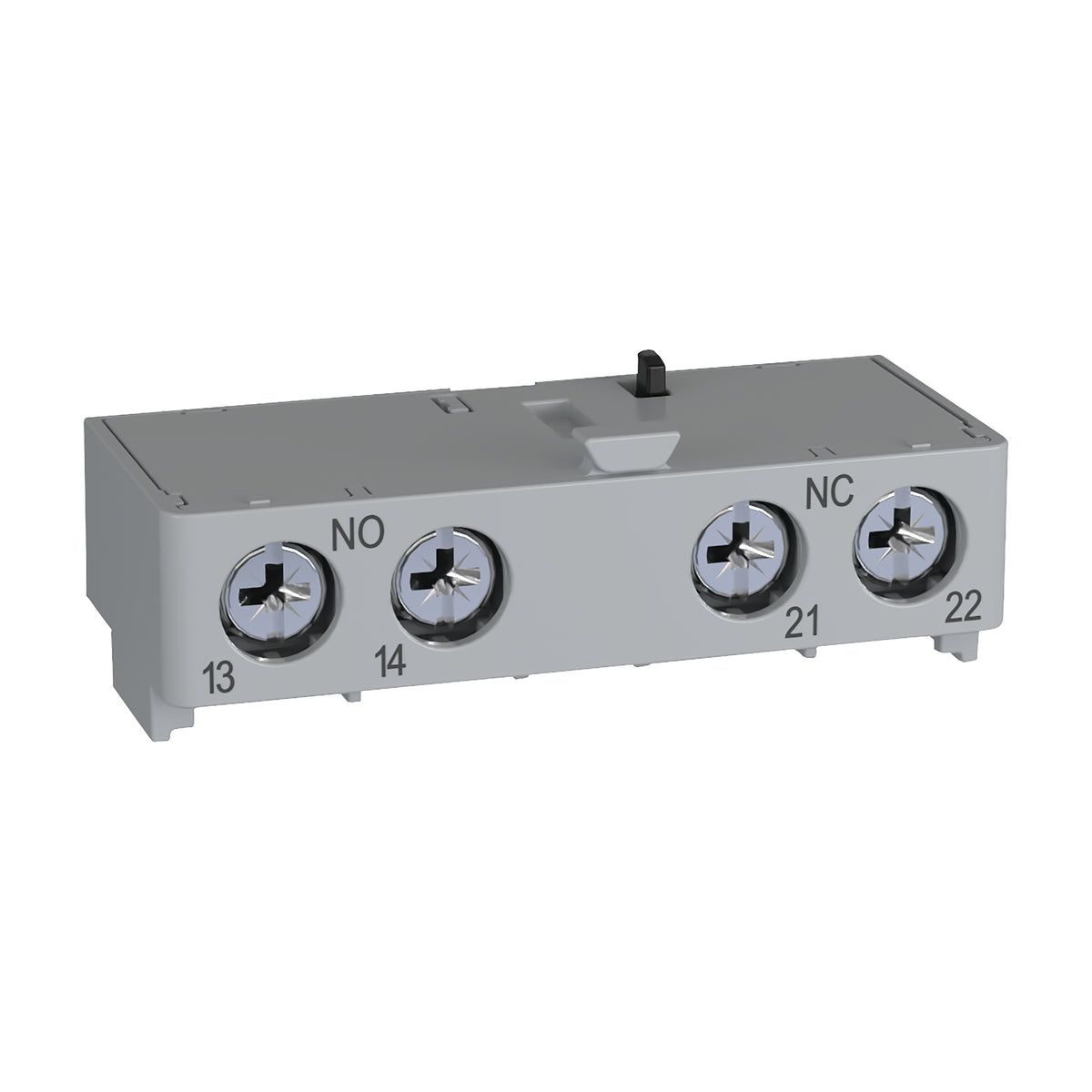

S&S KT9 Auxiliary Contact with 1NO Contact Front Mount
Regular price
₱0.00 PHP
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Auxiliary contact block
Electrical
Number of contacts as normally open contact1
Rated insulation voltage Ui250 V
Rated operation current Ie at 40 °C Tu5 A
Rated operation current Ie at AC-15, 24 V4 A
Rated operation current Ie at AC-15, 120 V3 A
Rated operation current Ie at AC-15, 240 V1.5 A
Rated operation current Ie at DC-13, 24 V1.2 A
Rated operation current Ie at DC-13, 125 V0.22 A
Rated operation current Ie at DC-13, 250 V0.11 A
Construction
Mounting methodTop mounting
