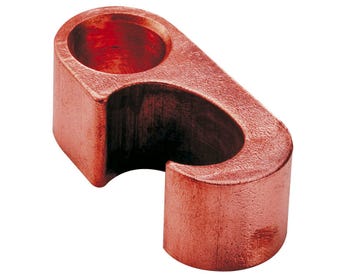

The CABAC CAEC10 heavy-duty C connector is designed for copper conductor tap-off and earth rod connection applications. It suits 50–120mm² run conductors with a 10mm² tap conductor and is suitable for use with 13mm, 14mm and 15mm diameter earth rods.
This connector is commonly used in earthing and bonding systems where a permanent compression connection is required. It is suitable for direct-burial applications when installed to the correct specification and is used across commercial, industrial, utility and infrastructure electrical work.
Key Features
- Suits 50–120mm² run conductor with 10mm² tap
- Suitable for 13mm, 14mm and 15mm earth rods
- Heavy-duty copper C connector construction
- Compression crimp installation
- Suitable for copper earthing and bonding connections
- Compact permanent jointing solution
Typical Applications
- Earth rod tap-offs
- Bonding conductors
- Earthing grids
- Industrial plant earthing
- Commercial electrical infrastructure
Technical Information
| Brand | CABAC |
| Part Number | CAEC10 |
| Run Conductor Range | 50–120mm² |
| Tap Conductor Size | 10mm² |
| Earth Rod Diameter | 13mm, 14mm, 15mm |
| Connector Type | Heavy-duty C connector |
| Installation Method | Compression crimp |
Installation Note: Use only the correct crimping die and tool for the connector size. Clean copper conductors before installation and verify the finished crimp before covering the joint.
