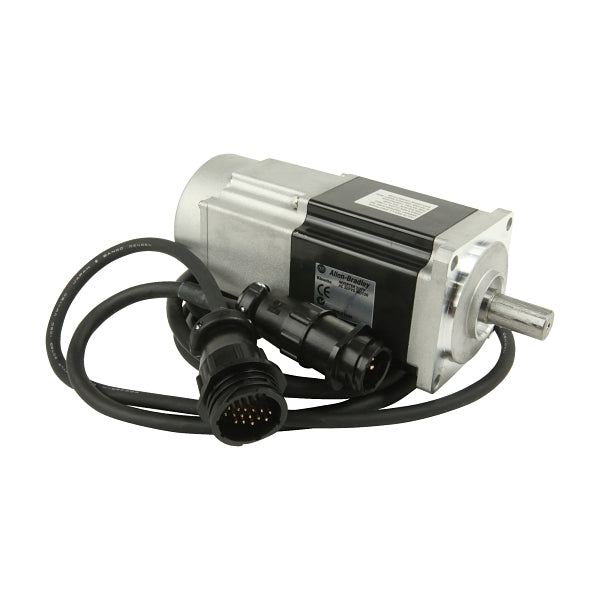

Allen-Bradley Kinetix 3 TL Servo Motor 230VAC 6000RPM 1.30Nm Inc Encoder No Brake Key
Regular price
$0.00 NZD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Electric servomotor
Communication
Feedback type2000 line incremental encoder
Feedback resolution2000 pulses/rev
Construction
Magnet stack (length)76.2 mm
Magnet stack (number of magnets)30
Degree of protection (IP)IP65
Mechanical
Rotational speed6000 1/min
Nominal torque3.05 Nm
Torque0.29 Nm
Shock acceleration (Max)20 g
Vibration frequency, operational (Max)2000 Hz
Vibration acceleration (Max)2.5 m/s²
Dimensions
Weight1.5 g
Environment
Operating temperature0-40 °C
Allowable relative humidity5-95 %
Ambient temperature-30-70 °C
