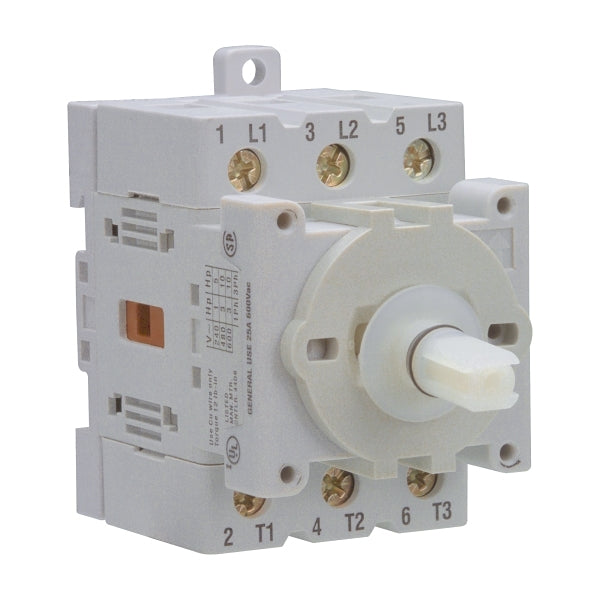

Sprecher and Schuh L7 Switch Body 3 Pole Off On 80A Base Mount
Regular price
$0.00 NZD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Off-load switch
Electrical
Number of poles3
Rated operation power at AC-3, 400 V30 kW
Rated operation current Ie at AC-21a, 690V80 A
Rated operation current Ie at AC-1, 690V80 A
Ithe, thermal current (enclosed)80 A
Ith, thermal current (open)100 A
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Construction
ModelOn/Off switch
Mounting methodDIN rail
Material housingPlastic
Wire/conductor size, rigid cable4-35 mm²
Wire/conductor size, flex cable4-50 mm²
Degree of protection (IP), front sideIP20
Suitable for front mountingNo
Complete device in housingNo
Mechanical
With zero (off) positionYes
Mechanical life (service cycles)200000 cycles
Number of switch positions2
Dimensions
Depth89 mm
Width72 mm
Height90 mm
Environment
Operating temperature-25-60 °C
