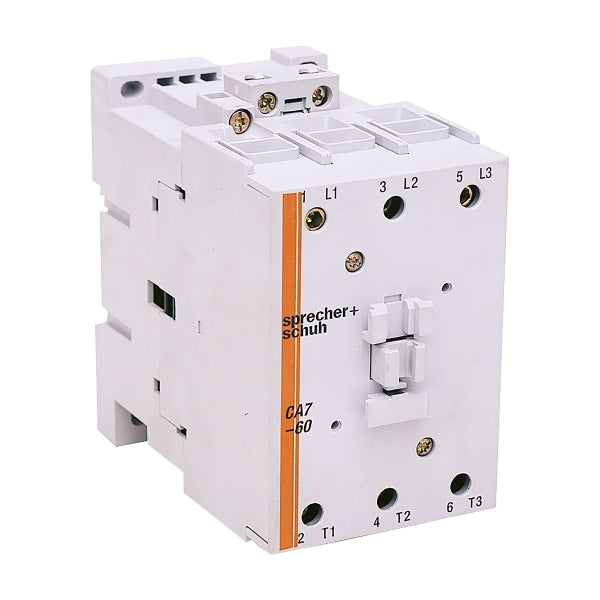

S&S CA7 Contactor 30kW 3Pole 415VAC Coil 3 Pole CA76000415VAC
Regular price
$0.00 NZD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Power contactor, AC switching
Electrical
Number of normally open contacts as main contact3
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-3, 400 V60 A
Rated operation power at AC-3, 400 V32 kW
Rated operation current Ie at AC-1, 400 V100 A
Max. rated operation voltage Ue AC690 V
Voltage type for actuatingAC
Rated control supply voltage Us at AC 50HZ400-415 V
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated operation current Ie at AC-3, 690 V34 A
Rated operation power at AC-3, 690 V32 kW
Rated operation power at AC-4, 400 V13 kW
Power consumption, AC coil pickup235 VA
Power consumption, AC coil hold-in19.6 VA
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-4, 400 V25.5 A
Construction
Degree of protection (IP)IP20
Mounting methodScrew mounting
Dimensions
Height122 mm
Width72 mm
Depth125.5 mm
Weight1.45 kg
