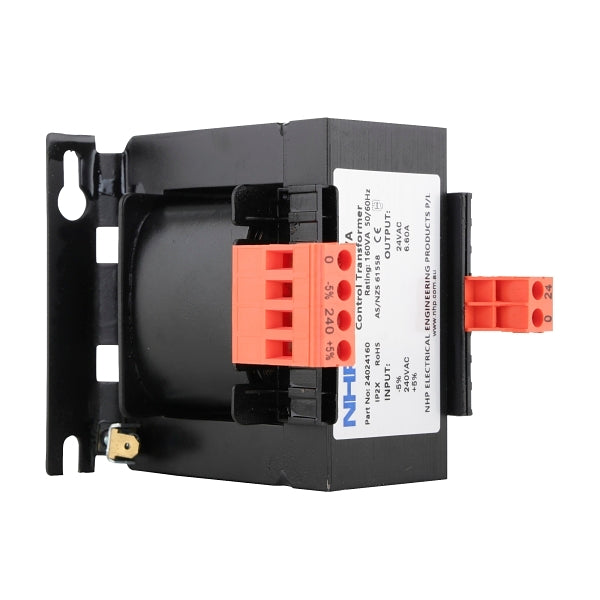

NHP Control Transformer 240V AC to 24V AC 160VA
Regular price
$0.00 NZD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
One-phase control transformer
Electrical
Primary voltage 1240 V
Secondary voltage 124 V
Rated apparent power160 VA
Type of insulation material according to IEC 85F
Type of electric connectionScrew connection
Construction
Suitable for mounting on PCBNo
Modular versionNo
Dimensions
Width96 mm
Height110 mm
Depth92 mm
Weight2.5 kg
