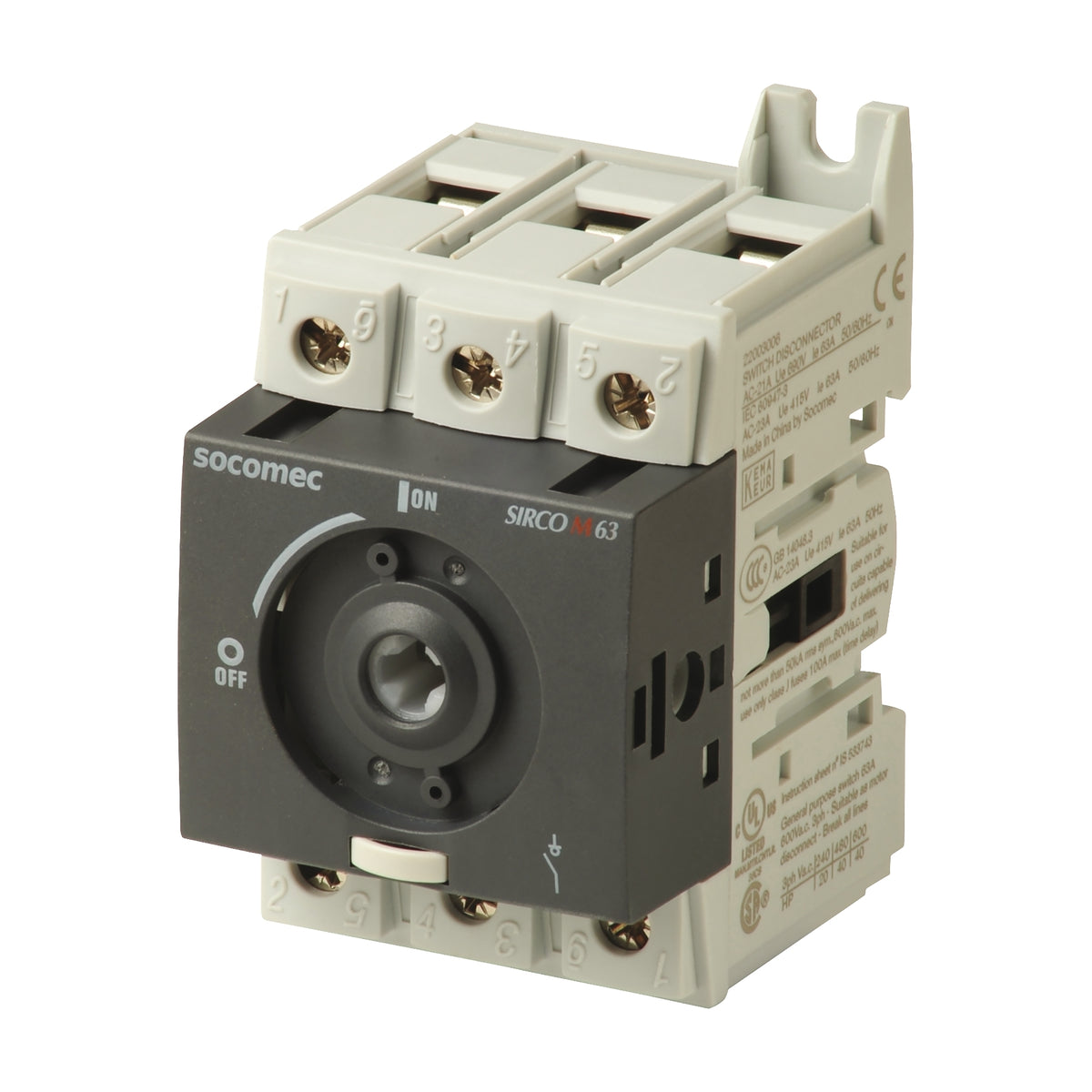

Socomec SLBM Load Break Switch Body, Base/DIN rail mount, 3P 63A
Regular price
$0.00 NZD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Switch disconnector
Electrical
Rated operating voltage Ue400690 V
Max. rated operation voltage Ue AC800 V
Rated permanent current at AC-21, 400 V63 A
Rated permanent current Iu63 A
Number of poles3
Rated operation power at AC-23, 400 V30 kW
Rated short-time withstand current lcw1.5 kA
Type of control elementOther
Type of electrical connection of main circuitScrew connection
Rated operating voltage690-400 V
Rated permanent current at AC-23, 400 V63 A
Switching power at 400 V30 kW
Conditioned rated short-circuit current Iq50 kA
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Motor drive optionalNo
Motor drive integratedNo
Voltage release optionalNo
Construction
Device constructionBuilt-in device fixed built-in technique
Colour control elementOther
Degree of protection (IP), front sideIP20
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchYes
Version as emergency stop installationYes
Version as reversing switchNo
Number of switches1
Dimensions
Height85 mm
Width65 mm
Depth110 mm
