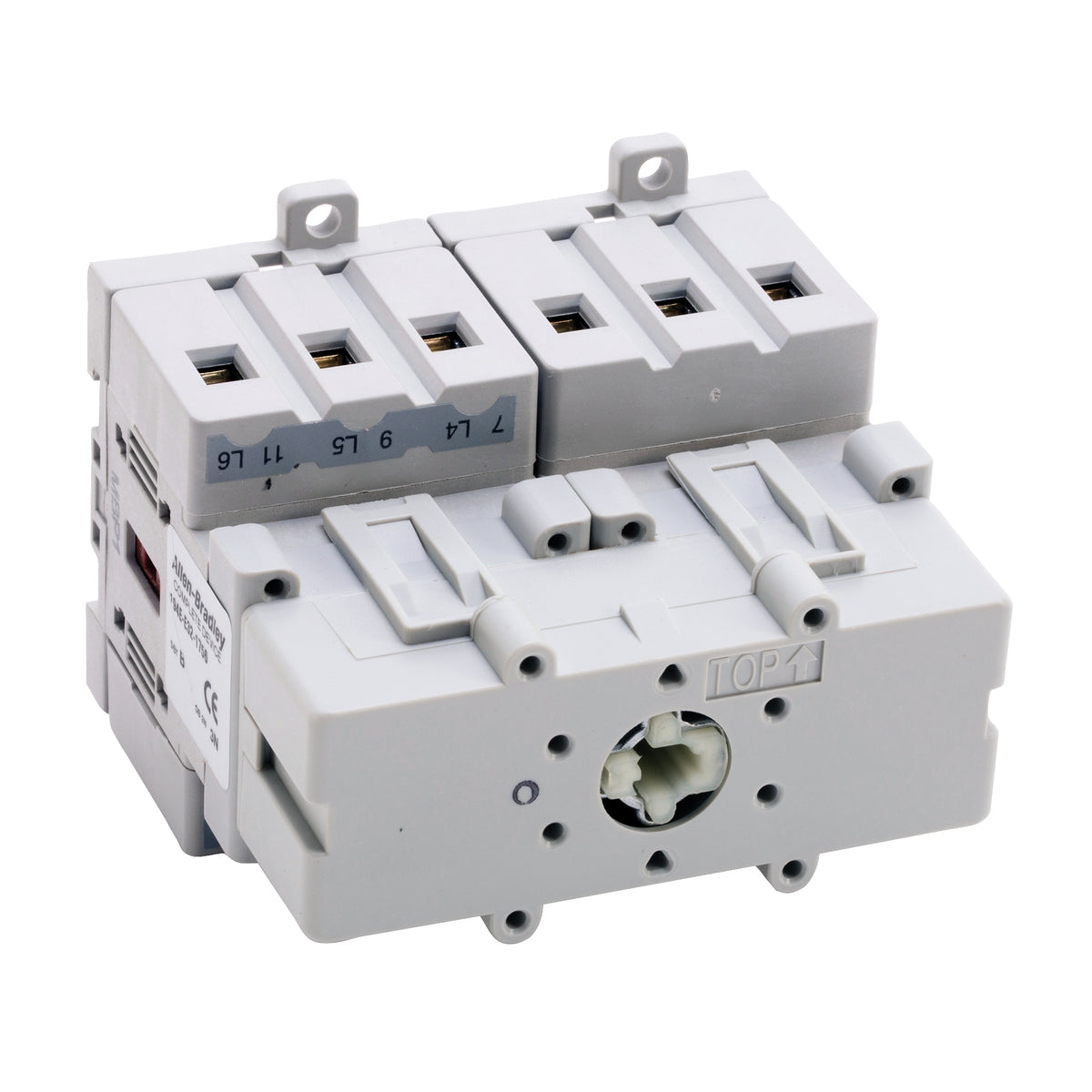

Allen-Bradley 194E Disconnect Switch Complete, Front/Door mount, Type N Act. RD/YL 3 Pole 32A
Regular price
$0.00 NZD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Switch disconnector
Electrical
Max. rated operation voltage Ue AC690 V
Rated permanent current Iu32 A
Number of poles3
Rated operation power at AC-3, 400 V11 kW
Rated operation power at AC-23, 400 V15 kW
Rated short-time withstand current lcw900 kA
Rated insulation voltage Ui690 V
Rated impulse withstand voltage Uimp8 kV
Type of control elementLong turning handle
Type of electrical connection of main circuitScrew connection
Rated operating voltage400-690 V
Conditioned rated short-circuit current Iq15 kA
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Voltage release optionalNo
Construction
Device constructionBuilt-in device fixed built-in technique
Colour control elementRed
Degree of protection (IP), front sideIP20
Version as main switchYes
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Version as reversing switchNo
Number of switches1
Suitable for front mounting 4-holeYes
Environment
Rated surrounding temperature without derating60 °C
Storage temperature-40-80 °C
