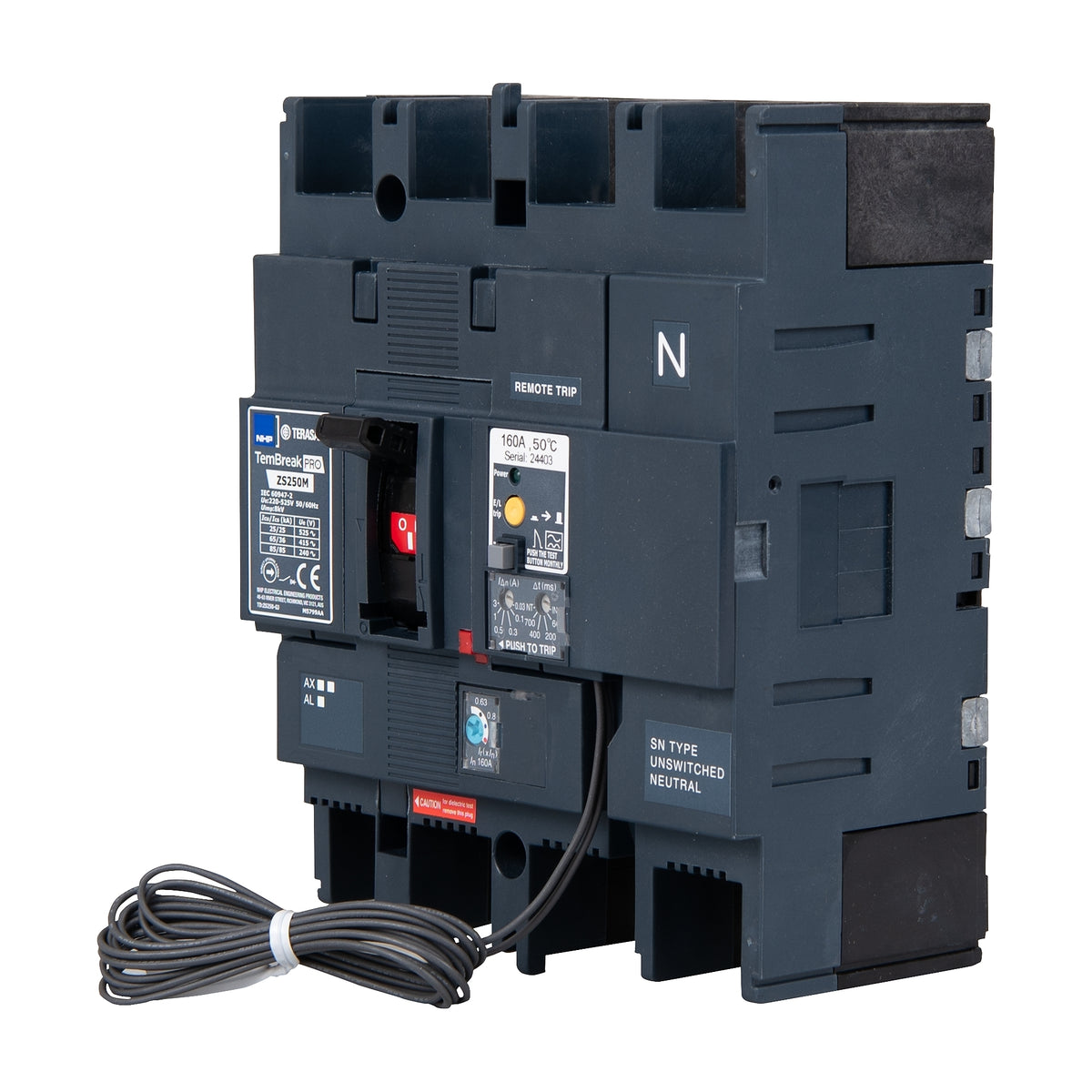

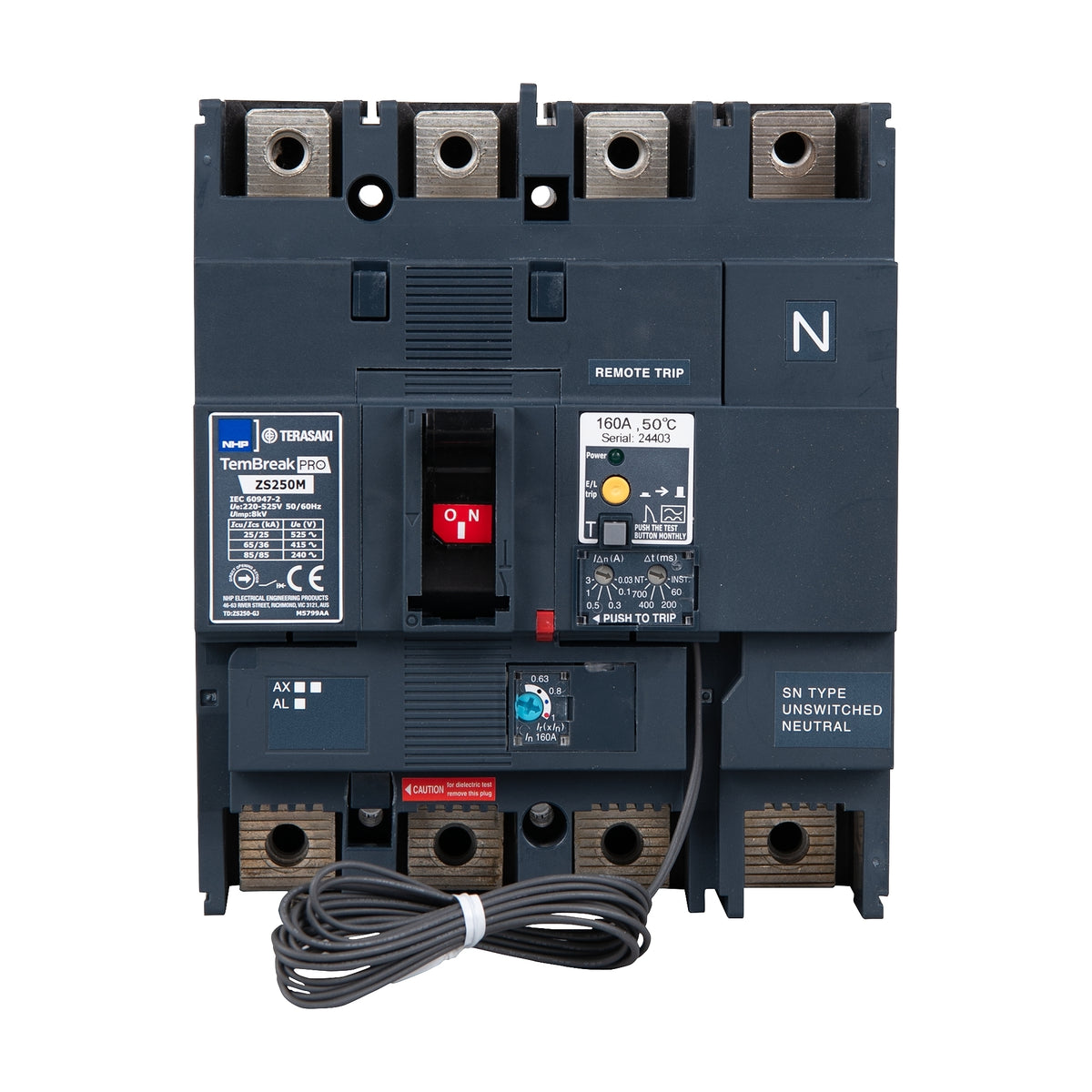

Terasaki TemBreak PRO ELCB 250 Frame 65kA 30mA 3A 4P 160A Adj. Thermal Fix. Magnetic Solid Neutral
Regular price
£0.00 GBP
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Power switching circuit breaker
Electrical
Rated current In160 A
Number of poles4
Max. rated operation voltage Ue AC525 V
Rated ultimate short-circuit breaking capacity lcu at 415 V, 50 Hz65 kA
Rated service short-circuit breaking capacity lcs at 415 V, 50 Hz36 kA
Type of protection trip unitEarth leakage circuit breaker
Trip curveAdj. thermal, fixed magnetic
Frame size rating250 A
Long time overload protection adjustment range100-160 A
Position of connection for main current circuitFront side
Integrated earth fault protectionYes
Rated frequency50-60 Hz
Rated insulation voltage Ui525 V
Suitable for isolationYes
Rated impulse withstand voltage Uimp8 kV
Over voltage categoryIV
Reverse connection of supply possibleYes
AC power loss per pole at In13.33 W
Electrical life at Un, In (service cycles)10000 cycles
Type of electrical connection of main circuitBolt connection
Power loss40 W
Mechanical
Cable cross section (range)35-185 mm²
DIN rail (top hat rail) mounting optionalYes
Mechanical life (service cycles)30000 cycles
Vibration acceleration (Max)19 m/s²
Vibration frequency, operational (Max)16.7 Hz
Vibration duration (Max)12 min
Dimensions
Height165 mm
Width120 mm
Pole connection pitch35 mm
Built-in depth68 mm
Depth (toggle included)92 mm
Weight1.9 kg
Environment
Pollution degree3
Rated surrounding temperature without derating50 °C
Rated temperature-5-70 °C
Maximum operating temperature70 °C
Storage temperature-10-70 °C
Allowable relative humidity0-85 %
Altitude before derating (Max)2000 m
Certificates/Approvals
StandardAS/NZS IEC 60947.2
