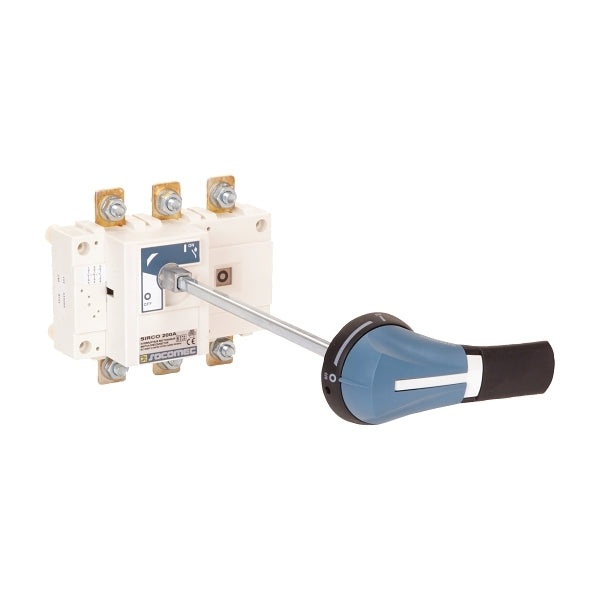

Socomec SLB Load Break Switch kit, w/ External Handle, 3P 250A
Regular price
£0.00 GBP
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Switch disconnector
Electrical
Rated permanent current at AC-21, 400 V250 A
Rated permanent current Iu250 A
Number of poles3
Rated operation power at AC-23, 400 V132 kW
Rated operation current Ie at AC-23a, 400 V250 A
Rated operation current Ie at AC-23a, 500 V200 A
Rated operation current Ie at AC-23a, 690 V100 A
Rated operation current Ie at DC-23a, 500 V200 A
Rated short-time withstand current lcw17 kA
Rated insulation voltage Ui800 V
Rated impulse withstand voltage Uimp8 kV
Construction
Degree of protection (IP), front sideIP65
Dimensions
Height160 mm
Width160 mm
Depth135 mm
Weight1.7 kg
