Home » S&S PCS Soft Starter 480V 9A ND3W 24VAC and VDC Control

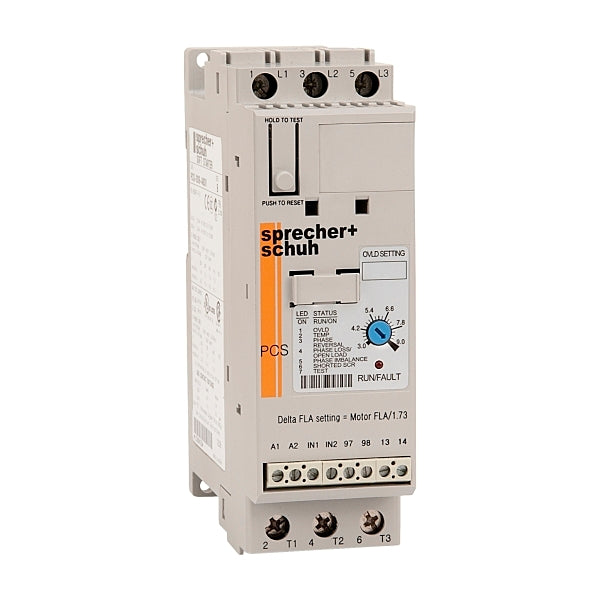

S&S PCS Soft Starter 480V 9A ND3W 24VAC and VDC Control
S&S PCS Soft Starter 480V 9A ND3W 24VAC and VDC Control
NHP

S&S PCS Soft Starter 480V 9A ND3W 24VAC and VDC Control

Out of stock
SKU: PCS009480V024
£0.00 GBP

Got questions?

Feel free to get in touch.

Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.

Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.

Component Type (ETIM Class)
Soft starter
Electrical
Rated operation current Ie at 40 °C Tu9 A
Rated power three-phase motor, inline, at 400 V4 kW
Rated power three-phase motor, inside delta, at 400 V7.5 kW
Rated operating voltage Ue200-480 V
Integrated motor overload protectionYes
Release classAdjustable
Internal bypassYes
Control supply voltage Us at AC 50HZ24 V
Control supply voltage Us at AC 60HZ24 V
Voltage type for actuatingAC/DC
Control supply voltage Us at DC24 V
FunctionSingle direction
Construction
With displayNo
Degree of protection (IP)IP2X
Dimensions
Height139.7 mm
Width44.8 mm
Depth110 mm
Weight0.86 kg
Environment
Rated surrounding temperature without derating40 °C
