CAW Series
Couldn't load pickup availability
Got questions?
Feel free to get in touch.

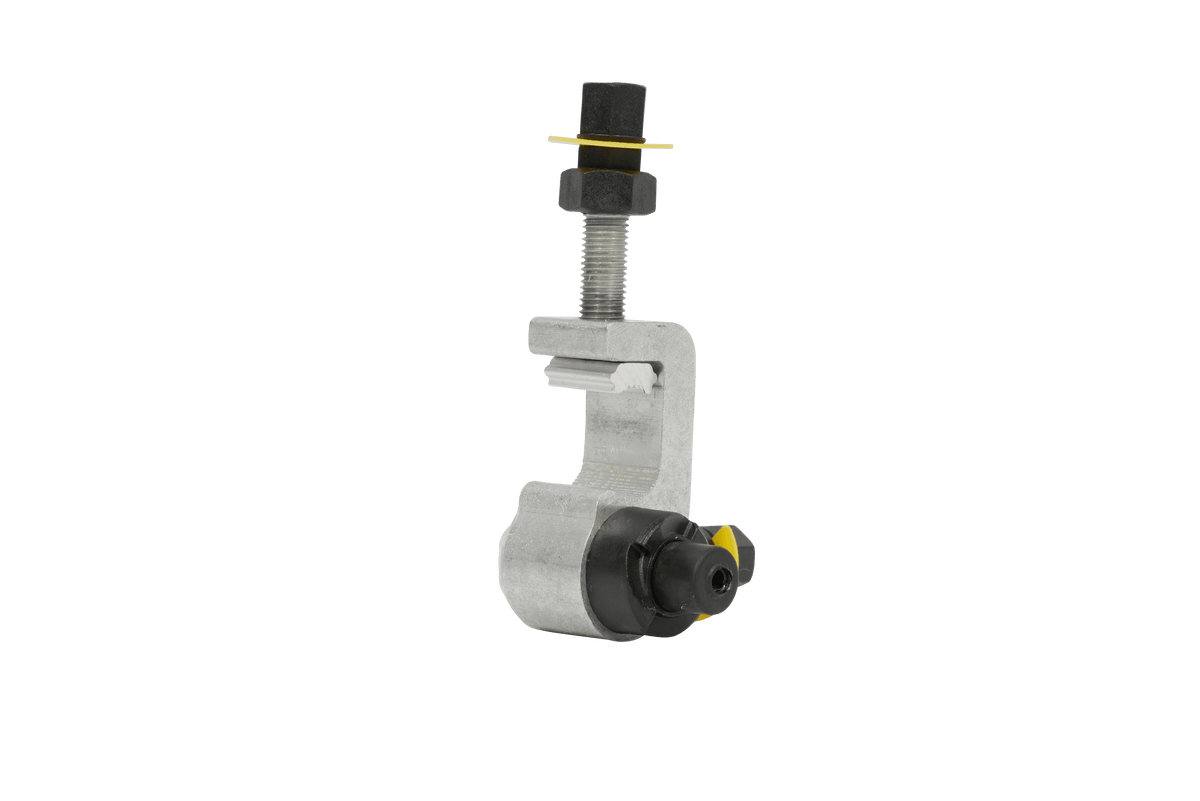

Single Bolt
The CAW series of connectors have been specially designed to provide a waterproof connection between insulated overhead services to a variety of bare aluminium overhead mains. Both single and double tap models are available along with a two bolt mains and service tap for neutral connections.

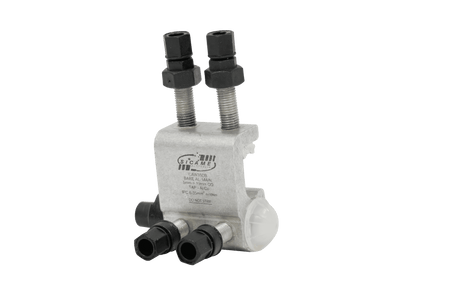

Double Bolt
The two bolt CAW is specifically designed for the neutral connection where two bolts or clamping plates contact the conductor ensuring a positive dual connection.
Products on this page are unsuitable for multi-stranded flexible cables.
Product Range
| Product Number | Mains Cable Range mm² | Service side cable range mm² | No. of Service Connections | Viewing Window |
| CAW35 | 16-210 | 6 – 35 | 1 | Yes |
| CAW235 | 16-210 | 6 – 35 | 2 | Yes |
| CAW35BK | 16-210 | 6 – 35 | 1 | No |
| CAW235BK | 16-210 | 6 – 35 | 2 | No |
| CAW35DB | 16-210 | 6 – 35 | 1 | Yes |

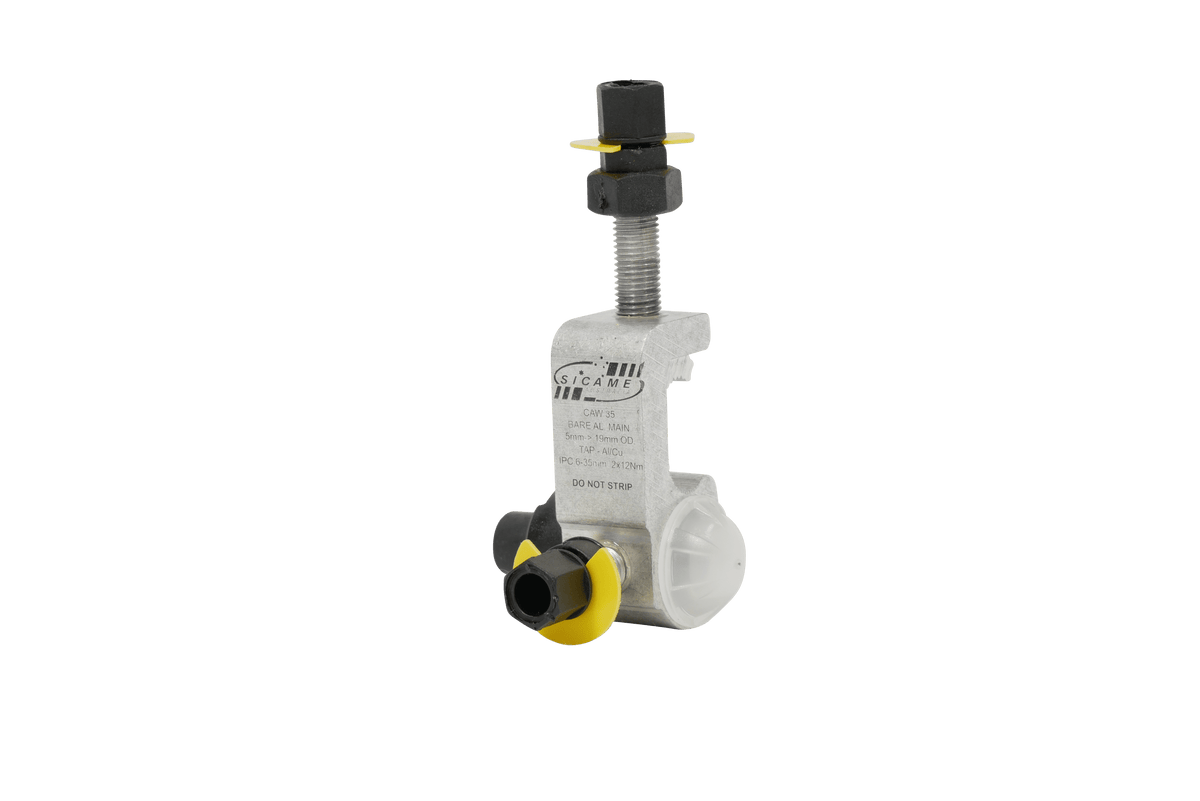

Note: Add suffix ‘E’ for addition of yellow shear-head indicator
• Positive clamping of mains with the use of shear-head technology
• Insulated service connection made with the use of insulation piercing technology, no need to strip service conductor insulation
• Easy and simple to use
• Supplied with service conductor viewing window to show fully inserted or can be supplied black with no window
• Can be supplied as single or twin service connection
• Translucent viewing window for visual check to ensure the conductor is fully inserted right up to the window
• Disconnection of service by easy removal of the connector from the mains
• Complies with relevant sections of AS/NZS 4396:1999.
Bare Aluminium Mains cable to Insulated Service cable
Installation Notes
Use only a 13mm AF, six-point hexagon socket to tighten bolts.
All other connections made on the service and consumers cable must also be waterproof to prevent moisture ingress through the cable into the connector.
