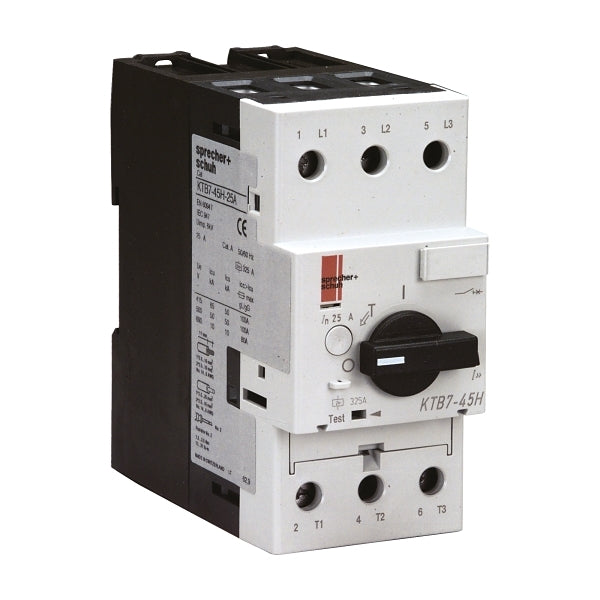

S&S KT7 Motor Circuit Protector 32A
Regular price
$0.00 CAD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Motor protection circuit-breaker
Electrical
Rated permanent current Iu32 A
Switch off techniqueMagnetic
Max. rated operation voltage Ue690 V
Rated short-circuit breaking capacity lcu at 400 V, AC65 kA
Rated operation power at AC-3, 400 V15 kW
With thermal protectionNo
Type of control elementTurn handle
Type of electrical connection of main circuitScrew connection
Number of poles3
Construction
Degree of protection (IP)IP2X
Mechanical
Max. tightening torque3.5 Nm
Dimensions
Height111.4 mm
Width54 mm
Depth114.5 mm
Weight0.78 kg
