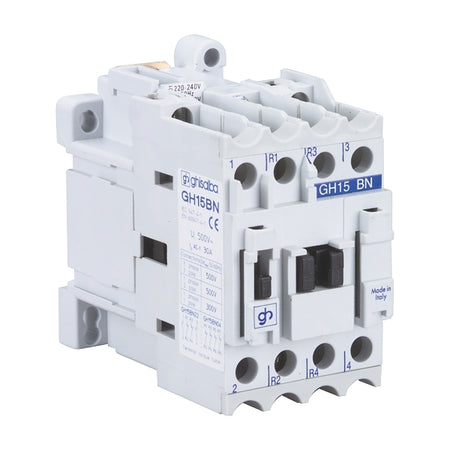

Ghisalba Contactor 4kW 4Pole NC 240VAC Coil
Regular price
$0.00 CAD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Power contactor, AC switching
Electrical
Number of normally open contacts as main contact0
Number of normally closed contacts as main contact4
Rated operation current Ie at AC-3, 400 V9 A
Rated operation power at AC-3, 400 V4 kW
Rated operation current Ie at AC-1, 400 V25 A
Max. rated operation voltage Ue AC690 V
Voltage type for actuatingAC
Rated control supply voltage Us at AC 50HZ220-240 V
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitScrew connection
Construction
Degree of protection (IP)IP20
Mounting methodDIN-rail/screw
Dimensions
Height80 mm
Width45 mm
Depth85 mm
Weight0.4 kg
