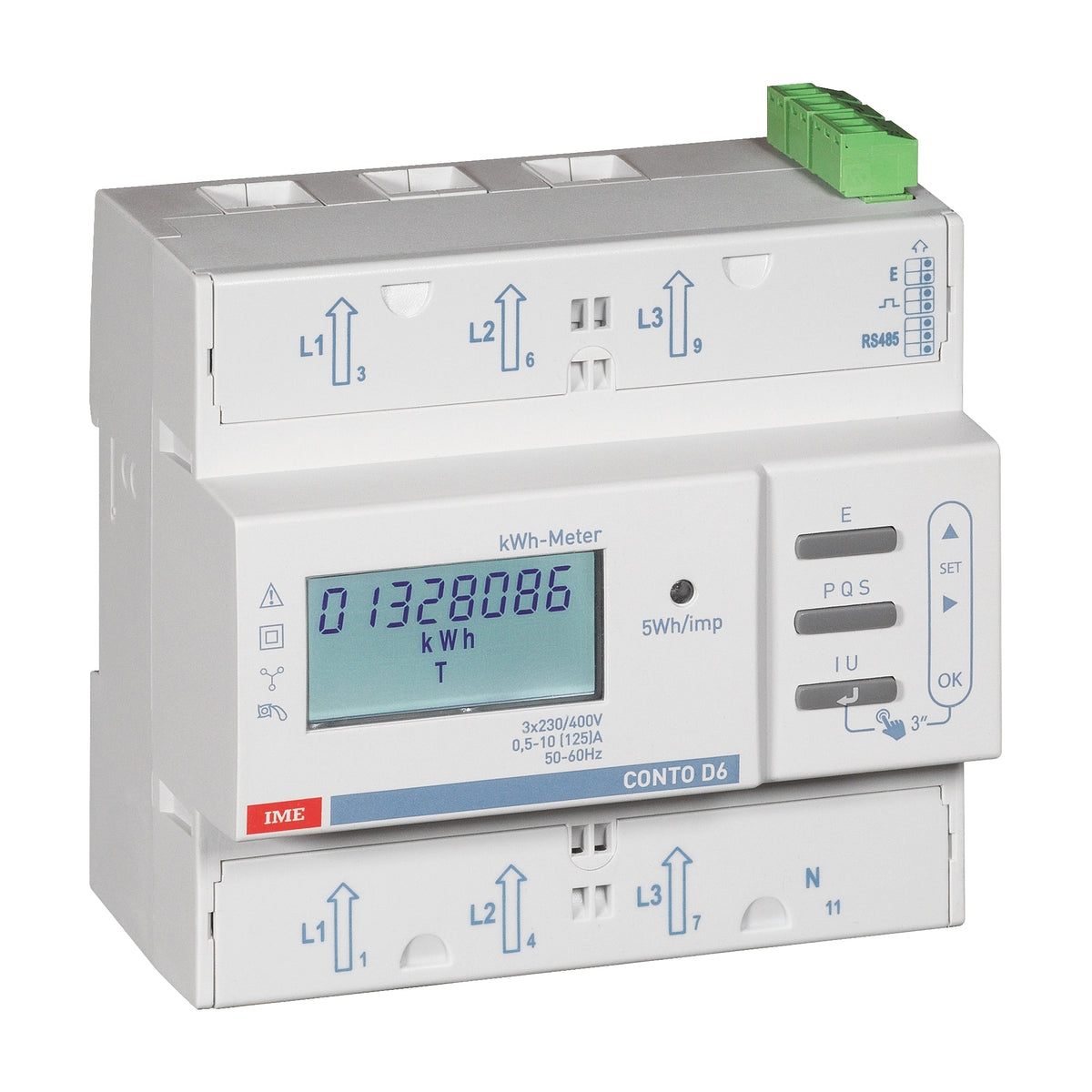

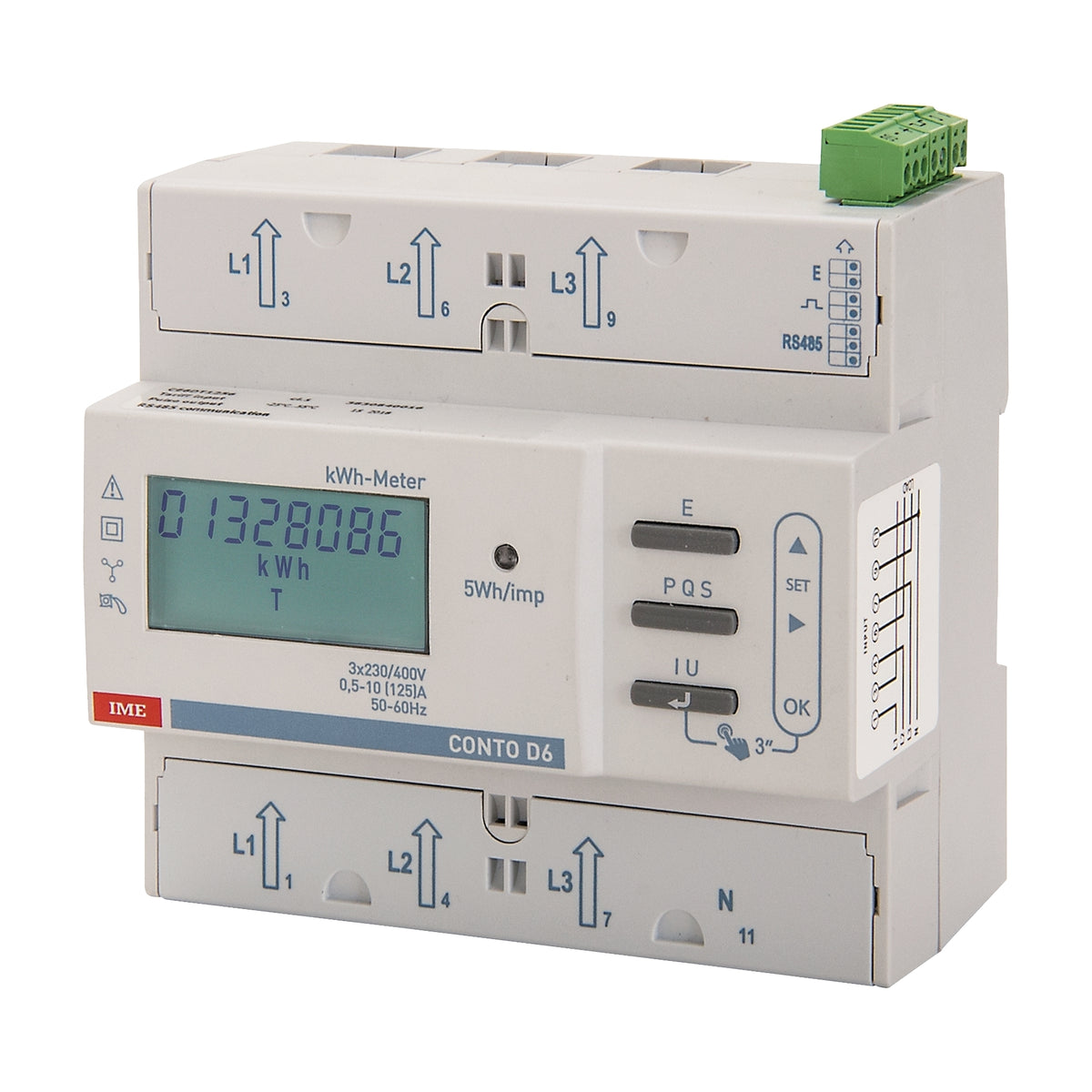

IME CONTO D6 Energy Meter Contod6 Direct 3 Phase 400V 100A with RS485 Modbus
Regular price
$0.00 CAD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Kilowatt-hour meter
Electrical
Pole typeFour conductor
Nominal current (In)10 A
Max. current (Imax)100 A
Frequency47-63 Hz
Accuracy classB
Tariff typeTwo-tariff
Tariff controlExternal
Measurement type load profileNo
CalibratedYes
Energy typeEffective power and blind power
Communication
Type of interfaceRS-485
Pulse outputOptic
Pulse typeS0
With lock codeYes
Construction
ModelDirect measurement
Type of meterElectronic
Suitable forPurchase
Type of indicationDigital
Mounting methodDRA (DIN-rail adapter)
Number of positions total (counter)8
Degree of protection (IP)IP54
Mechanical
Escapement mechanismYes
Dimensions
Width107 mm
Depth66 mm
Height112 mm
Width in number of modular spacings6
Certificates/Approvals
ApprovalDomestic
