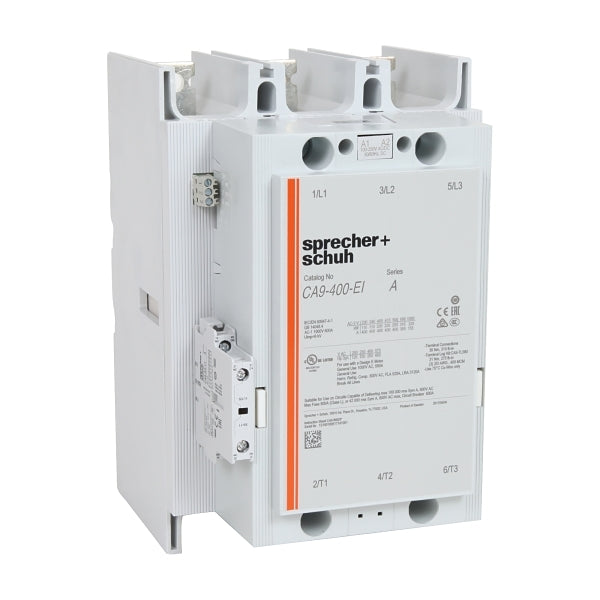

S&S CA9 Contactor 220kW 3Pole 250 to 500VAC and VDC Electronic Coil 1NO 1NC Contact Auxiliary
Regular price
$0.00 CAD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Power contactor, AC switching
Electrical
Number of normally open contacts as main contact3
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-3, 400 V400 A
Rated operation power at AC-3, 400 V220 kW
Rated operation current Ie at AC-1, 400 V600 A
Max. rated operation voltage Ue AC1000 V
Voltage type for actuatingAC/DC
Rated control supply voltage Us at AC 50HZ250-500 V
Rated control supply voltage Us at DC250-500 V
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Rated operation current Ie at AC-3, 690 V350 A
Rated operation power at AC-3, 690 V315 kW
Rated operation current Ie at AC-3, 1000 V155 A
Rated operation power at AC-3, 1000 V220 kW
Rated operation power at AC-4, 400 V160 kW
Rated control supply voltage Us at AC 60HZ250-500 V
Power consumption, AC coil pickup950 VA
Power consumption, AC coil hold-in12 VA
Power consumption, DC coil pickup885 W
Power consumption, DC coil hold-in7.5 W
Type of electrical connection of main circuitBolt connection
Rated operation current Ie at AC-4, 400 V307 A
Construction
Degree of protection (IP)IP00
Mounting methodScrew mounting
Dimensions
Height268 mm
Width186 mm
Depth216 mm
Weight12 kg
