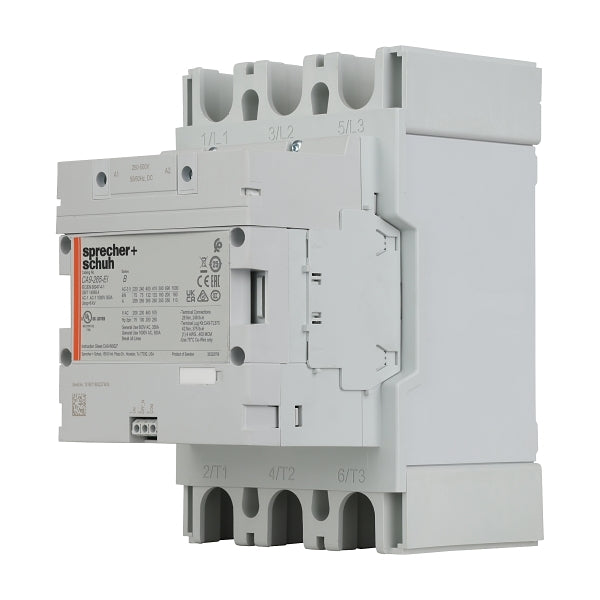

S&S CA9 Contactor 132kW 3Pole 250 to 500VAC and VDC Electronic Coil 1NO 1NC Contact Auxiliary
Regular price
$0.00 CAD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Power contactor, AC switching
Electrical
Number of normally open contacts as main contact3
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-3, 400 V265 A
Rated operation power at AC-3, 400 V132 kW
Rated operation current Ie at AC-1, 400 V400 A
Max. rated operation voltage Ue AC1000 V
Voltage type for actuatingAC/DC
Rated control supply voltage Us at AC 50HZ250-500 V
Rated control supply voltage Us at DC250-500 V
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Rated operation current Ie at AC-3, 690 V250 A
Rated operation power at AC-3, 690 V200 kW
Rated operation current Ie at AC-3, 1000 V113 A
Rated operation power at AC-3, 1000 V160 kW
Rated operation power at AC-4, 400 V110 kW
Rated control supply voltage Us at AC 60HZ250-500 V
Power consumption, AC coil pickup420 VA
Power consumption, AC coil hold-in21 VA
Power consumption, DC coil pickup600 W
Power consumption, DC coil hold-in4.7 W
Type of electrical connection of main circuitBolt connection
Rated operation current Ie at AC-4, 400 V195 A
Construction
Degree of protection (IP)IP00
Mounting methodScrew mounting
Dimensions
Height225 mm
Width140 mm
Depth195.5 mm
Weight4.64 kg
