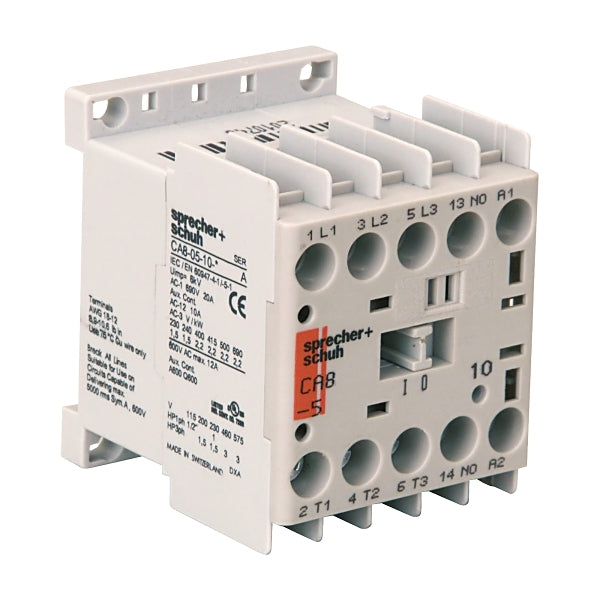

S&S CA8 Contactor Mini 5.5kW 3Pole 240VAC Coil 1NO Contact Auxiliary
Regular price
$0.00 CAD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Power contactor, AC switching
Electrical
Number of normally open contacts as main contact3
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-3, 400 V11.5 A
Rated operation power at AC-3, 400 V5.5 kW
Rated operation current Ie at AC-1, 400 V20 A
Max. rated operation voltage Ue AC690 V
Voltage type for actuatingAC
Control supply voltage Us at AC 50HZ240 V
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact0
Rated operation current Ie at AC-3, 690 V6.7 A
Rated operation power at AC-3, 690 V5.5 kW
Rated operation power at AC-4, 400 V1.1 kW
Control supply voltage Us at AC 60HZ240 V
Power consumption, AC coil pickup35 VA
Power consumption, AC coil hold-in5 VA
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-4, 400 V3.6 A
Construction
Degree of protection (IP)IP20
Mounting methodScrew mounting
Dimensions
Height56 mm
Width44.9 mm
Depth53 mm
Weight0.16 kg
