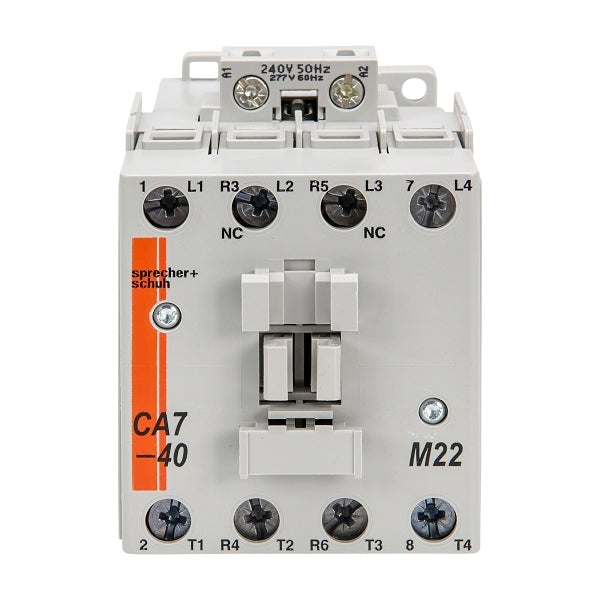

S&S CA7 Contactor 20kW 4Pole 240VAC Coil 2NO 2NC Contact Auxiliary
Regular price
$0.00 CAD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Power contactor, AC switching
Electrical
Number of normally open contacts as main contact2
Number of normally closed contacts as main contact2
Rated operation current Ie at AC-3, 400 V37 A
Rated operation power at AC-3, 400 V18.5 kW
Rated operation current Ie at AC-1, 400 V75 A
Max. rated operation voltage Ue AC690 V
Voltage type for actuatingAC
Control supply voltage Us at AC 50HZ240 V
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated operation current Ie at AC-3, 690 V9 A
Rated operation power at AC-3, 690 V7.5 kW
Control supply voltage Us at AC 60HZ277 V
Power consumption, AC coil pickup135 VA
Power consumption, AC coil hold-in13.3 VA
Type of electrical connection of main circuitScrew connection
Construction
Degree of protection (IP)IP20
Mounting methodDIN-rail/screw
Dimensions
Height81 mm
Width59 mm
Depth107 mm
Weight0.63 kg
