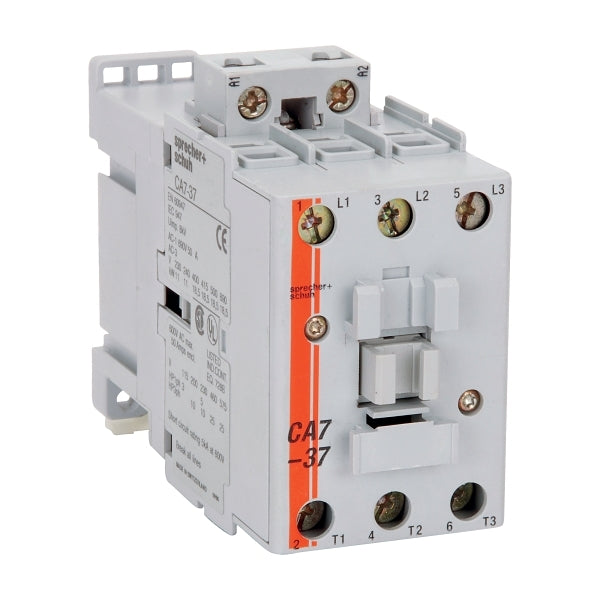

S&S CA7 Contactor 15kW 3Pole 110 to 125VDC Coil
Regular price
$0.00 CAD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Power contactor, AC switching
Electrical
Number of normally open contacts as main contact3
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-3, 400 V30 A
Rated operation power at AC-3, 400 V15 kW
Rated operation current Ie at AC-1, 400 V65 A
Max. rated operation voltage Ue AC690 V
Voltage type for actuatingDC
Rated control supply voltage Us at DC110-125 V
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated operation current Ie at AC-3, 690 V18 A
Rated operation power at AC-3, 690 V15 kW
Rated operation power at AC-4, 400 V5.5 kW
Power consumption, DC coil pickup12 W
Power consumption, DC coil hold-in2.1 W
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-4, 400 V12 A
Construction
Degree of protection (IP)IP20
Mounting methodDIN-rail/screw
Dimensions
Height105 mm
Width45 mm
Depth104 mm
Weight0.52 kg
