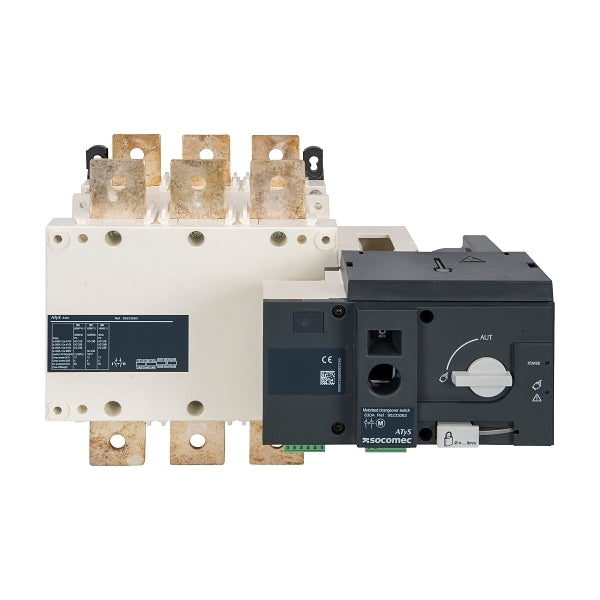

Socomec ATyS Remote Transfer Switch - ATyS r, No Integrated Logic, 4 Pole 630A
Regular price
$0.00 CAD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Switch disconnector
Electrical
Rated operating voltage Ue1000 V
Max. rated operation voltage Ue AC1000 V
Rated permanent current at AC-21, 400 V630 A
Rated control supply voltage Us at AC 50HZ400690 V
Rated permanent current Iu630 A
Number of poles4
Rated short-time withstand current lcw10 kA
Type of control elementOther
Type of electrical connection of main circuitBolt connection
Rated operating voltage400-690 V
Rated permanent current at AC-23, 400 V630 A
Switching power at 400 V5040 kW
Conditioned rated short-circuit current Iq50 kA
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact3
Number of auxiliary contacts as change-over contact0
Motor drive optionalNo
Motor drive integratedYes
Voltage release optionalNo
Construction
Device constructionBuilt-in device fixed built-in technique
Colour control elementOther
Degree of protection (IP), front sideIP20
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchYes
Version as emergency stop installationNo
Version as reversing switchYes
Number of switches2
Mechanical
Padlock lockingYes
Dimensions
Width334 mm
Weight17.98 kg
Depth320.5 mm
Height184 mm
